Siemens 3G-OTH-40919 — Technical Specifications

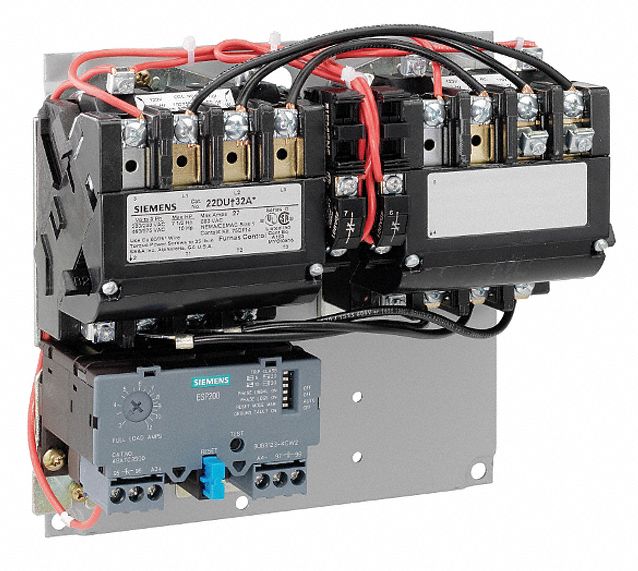

The SIEMENS NEMA Magnetic Motor Starter is a reversing starter with electronic overloads, featuring three poles, NEMA Size 00, and a 9 A rating. It operates with a 110/120V AC coil voltage, includes a pilot light and 1NO auxiliary contact, and uses screw terminals. Thermal units are not required as the overload is electronic.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 00, 9 A |
| Brand | SIEMENS |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Coil Voltage | 110/120V AC |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | 22BUA32AF |
| Terminal Connection Type | Screw Terminals |
| Auxiliary Contacts Included | 1NO |
