Siemens 3G-OTH-43252 — Technical Specifications

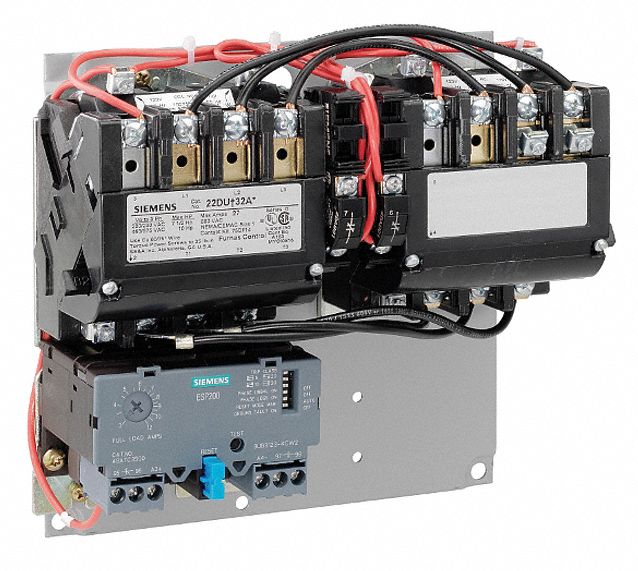

The SIEMENS NEMA Magnetic Motor Starter: Reversing (SKU 44N863, MPN 22DUC32AA) is a three-phase reversing starter with electronic overload protection, rated 27 A at NEMA Size 1. It features a dual-voltage coil (110-120/220-240V AC), screw terminals, one normally open auxiliary contact, and a built-in pilot light. No thermal units are required as the overload is electronic.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 1, 27 A, Electronic Protection |
| Brand | SIEMENS |
| Phase | Three |
| Poles | 3 |
| Coil Voltage | 110-120/220-240V AC |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | 22DUC32AA |
| Terminal Connection Type | Screw Terminals |
| Auxiliary Contacts Included | 1NO |
