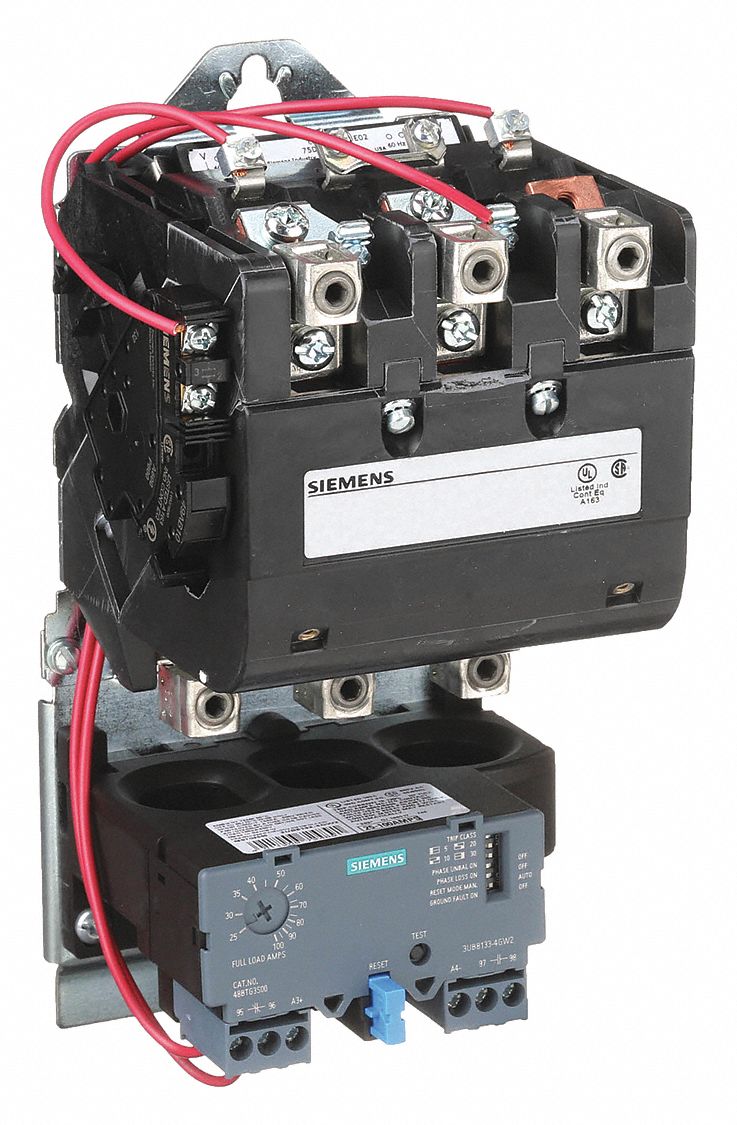

Siemens 3G-OTH-43092 — Technical Specifications
The SIEMENS NEMA Magnetic Motor Starter is a non-reversing starter with electronic overloads, featuring a three-phase design, 110/120V AC coil voltage, and a NEMA Size 3 rating at 90 A. It includes a pilot light, 1NO auxiliary contact, and screw terminals, with no thermal units required due to the electronic overloads.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 3, 90 A |
| Brand | SIEMENS |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Coil Voltage | 110/120V AC |
| Signaling Features | Pilot Light |
| Auxiliary Contact Form | 1NO |
| Thermal Units Required | None (Not Applicable to Electronic Overloads) |
| Manufacturer Part Number | 14HUG32AF |
| Terminal Connection Type | Screw Terminals |
| Auxiliary Contacts Included | 1NO |
