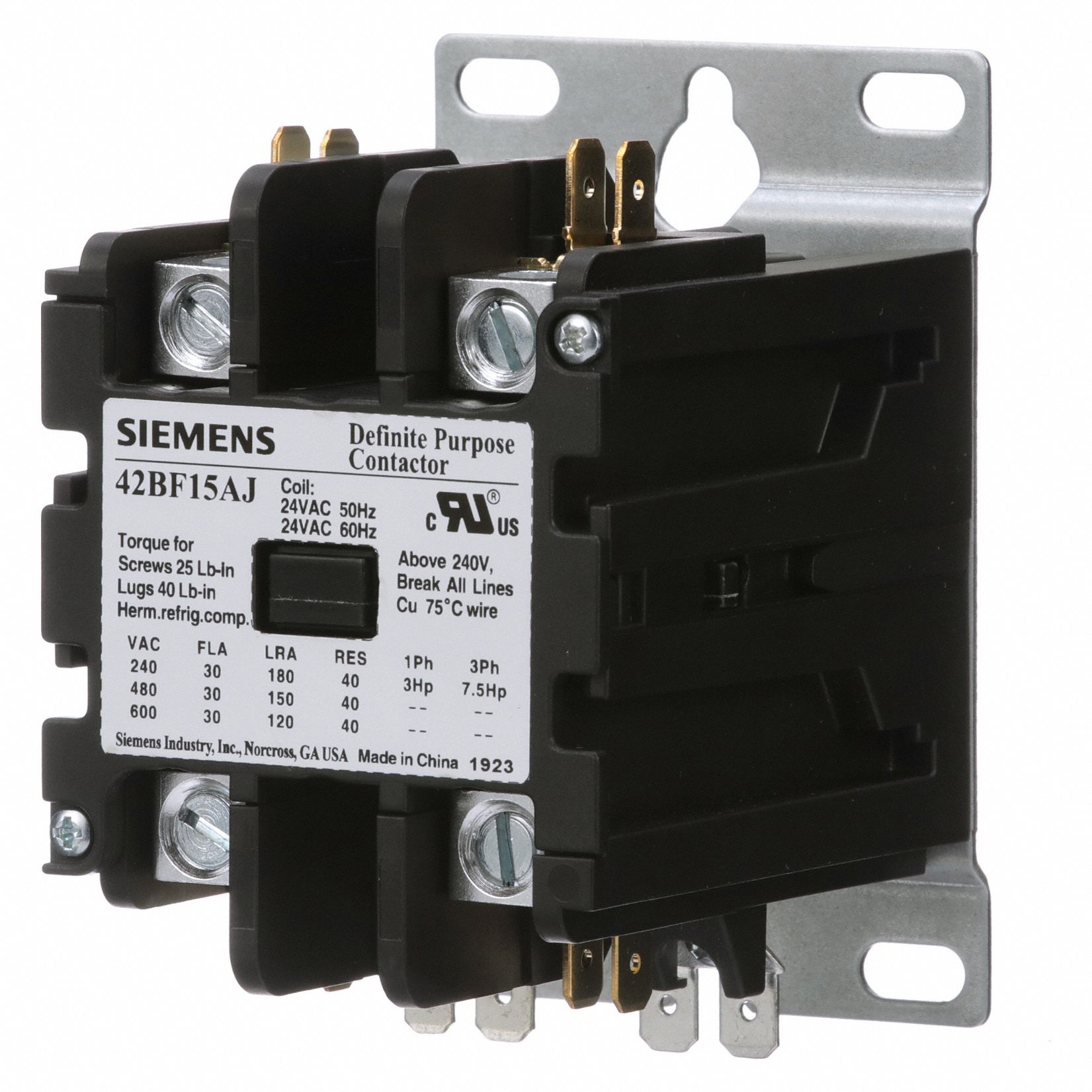

Siemens 3G-OTH-43638 — Technical Specifications
The SIEMENS 42 Series Definite Purpose Contactor is a non-reversing, single-phase contactor with 2 poles and a 2NO main pole contact form. It features a coil voltage of 110/110-120V AC, a maximum voltage rating of 600V AC, and surface mounting with quick disconnect and screw/box lug terminal connections.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | 30 A, Non-Reversing, Std Contactor Frame Size |
| Brand | SIEMENS |
| Phase | Single |
| Series | 42 Series |
| Coil Voltage | 110/110-120V AC |
| Mounting Style | Surface |
| Main Pole Contact Form | 2NO |
| Maximum Voltage Rating | 600V AC |
| Manufacturer Part Number | 42BF15AF |
| Terminal Connection Type | Quick Disconnect and Screw/Box Lug |
