Smc 3G-OTH-155225 — Technical Specifications

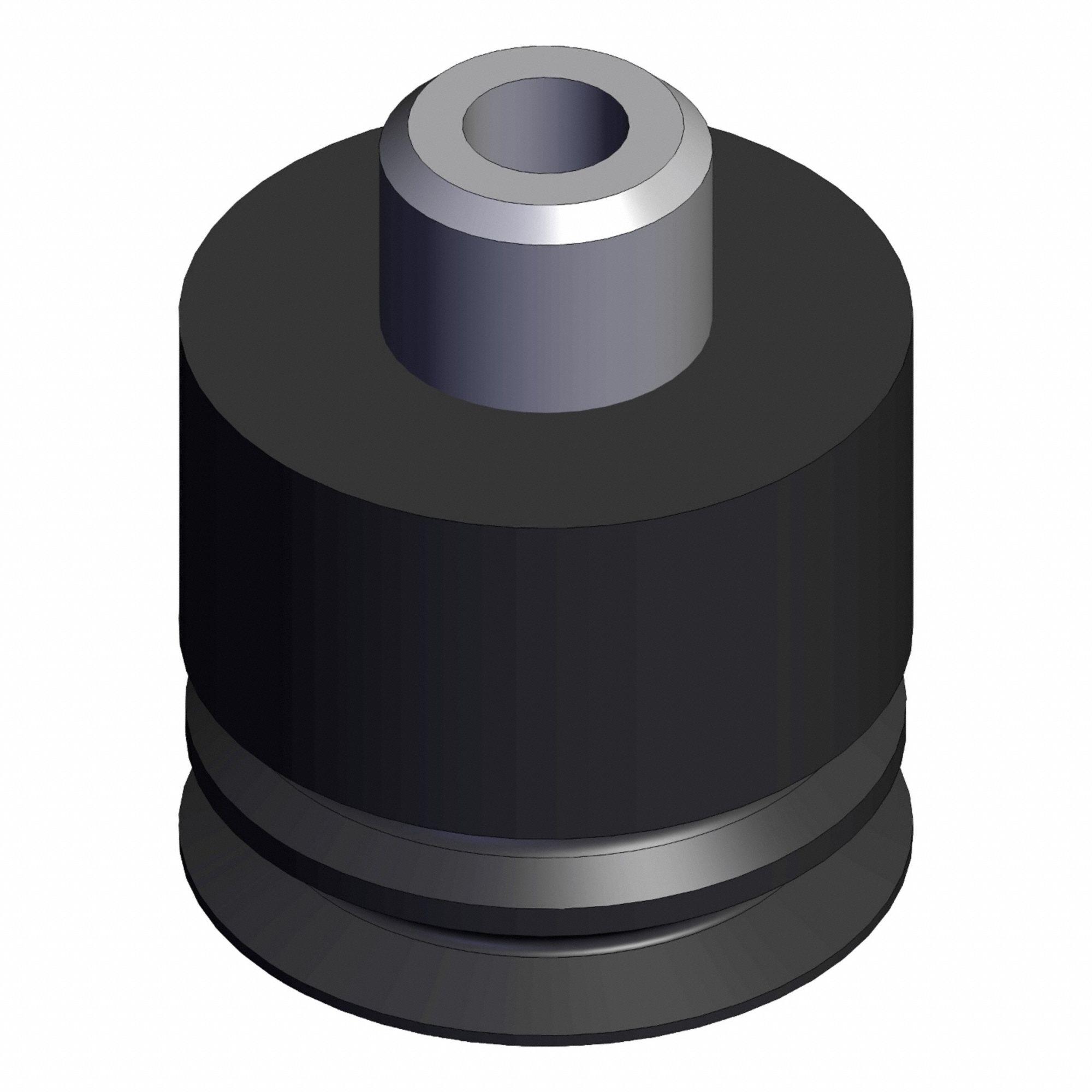

Name: Smc 3G-OTH-155225 SMC Bellows Cup: Bellows, M5 x 0.8, 10 mm Pad Dia, NBR, Black, 50, 13 mm Pad Ht, ZP2 (MPN ZP2-TB10MBN-H5). Key specifications — attr1019101: ZP2-TB10MBN-H5; attr1019103: SMC; attr1019107: 50.
Brand: Smc

The SMC ZP2-TB10MBN-H5 is a bellows-type vacuum pad assembly designed for automotive industry applications. This assembly features a 10 mm pad diameter, 13 mm pad height, M5 x 0.8 thread, and is constructed from NBR material in black. The unit has a quantity of 50 and is part of the ZP2 series from SMC.

View Product & Quote

Technical Specifications

Parameter	Value
Type	M5 x 0.8, NBR, Black, 50, ZP2
Pad Ht	13 mm
Pad Dia	10 mm
Manufacturer Part Number	ZP2-TB10MBN-H5
