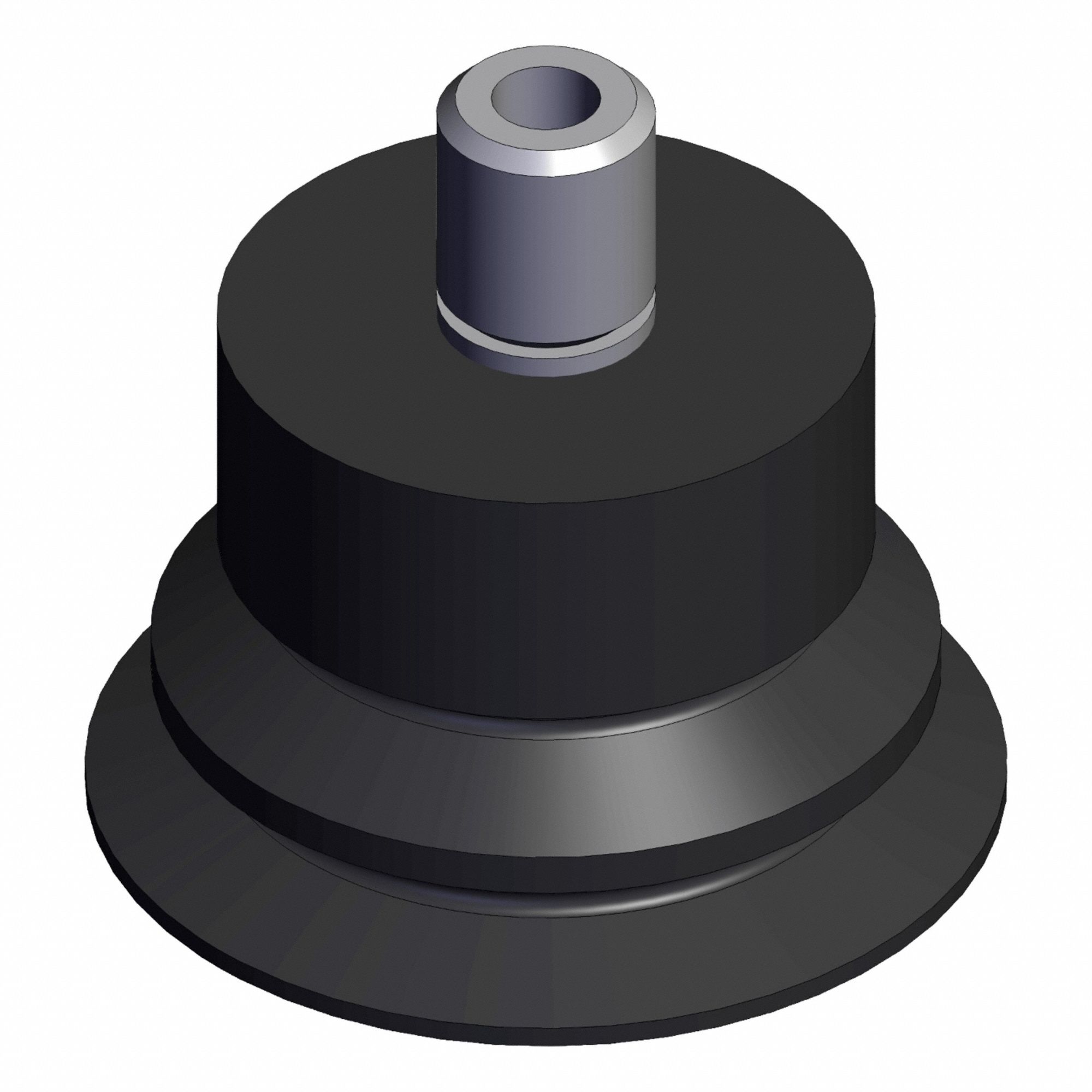

Smc 3G-OTH-155230 — Technical Specifications

Name: Smc 3G-OTH-155230 SMC Bellows Cup: Bellows, M5 x 0.8, 20 mm Pad Dia, NBR, Black, 50, 19 mm Pad Ht, ZP2 (MPN ZP2-TB20MBN-H5). Key specifications — attr1019101: ZP2-TB20MBN-H5; attr1019103: SMC; attr1019107: 50.
Brand: Smc

The SMC ZP2-TB20MBN-H5 is a bellows-type vacuum pad assembly from the ZP2 series, designed for automotive industry applications. It features a 20 mm pad diameter, 19 mm pad height, M5 x 0.8 thread, and is constructed from NBR (nitrile rubber) in black. This assembly has a quantity of 50 per package.

View Product & Quote

Technical Specifications

Parameter	Value
Type	M5 x 0.8, NBR, Black, 50, ZP2
Pad Ht	19 mm
Pad Dia	20 mm
Manufacturer Part Number	ZP2-TB20MBN-H5
