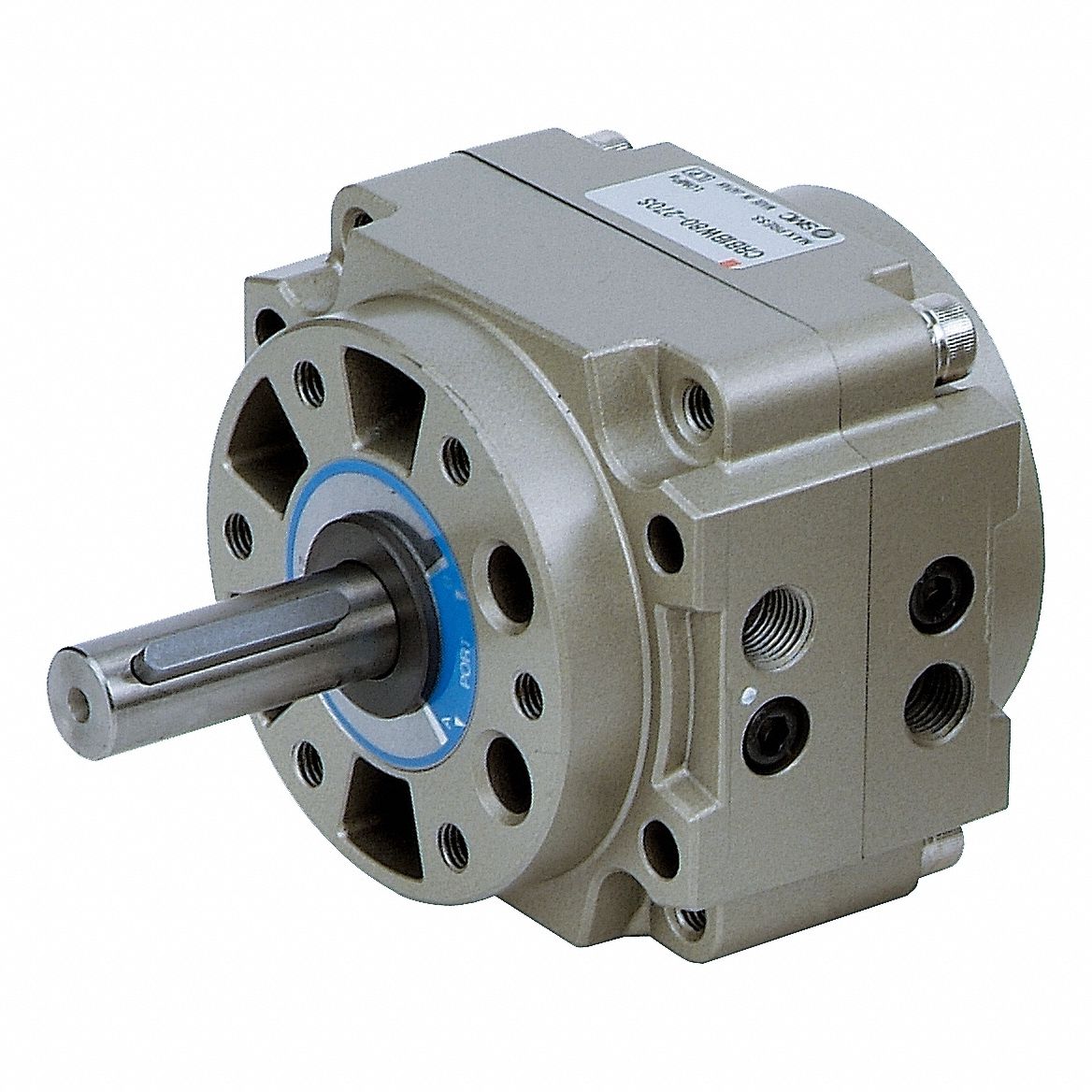

Smc 3G-OTH-161094 — Technical Specifications

Name: Smc 3G-OTH-161094 SMC Rotary Actuator: Single Vane Actuator, 90° Rotation Angle, 24.2 N-m Output Torque, 1/8 in BSPT (MPN CDRB1BW50-90S). Key specifications — attr293632: CDRB1BW50-90S; attr294754: SMC; attr947098: Magnetic Piston; attr947108: Basic; attr947133: Metric; attr1108504: Side Ported.
Brand: Smc

The SMC Rotary Actuator: Single Vane Actuator (MPN CDRB1BW50-90S) is a vane-style rotary actuator featuring a 90° rotation angle and 24.2 N-m output torque. It includes a magnetic piston, a basic configuration, metric dimensions, and side ported ports with 1/8 in BSPT connections.

View Product & Quote

Technical Specifications

Parameter	Value
BSPT	1/8 in
Rotation Angle	90°
N-M Output Torque	24.2
Manufacturer Part Number	CDRB1BW50-90S
