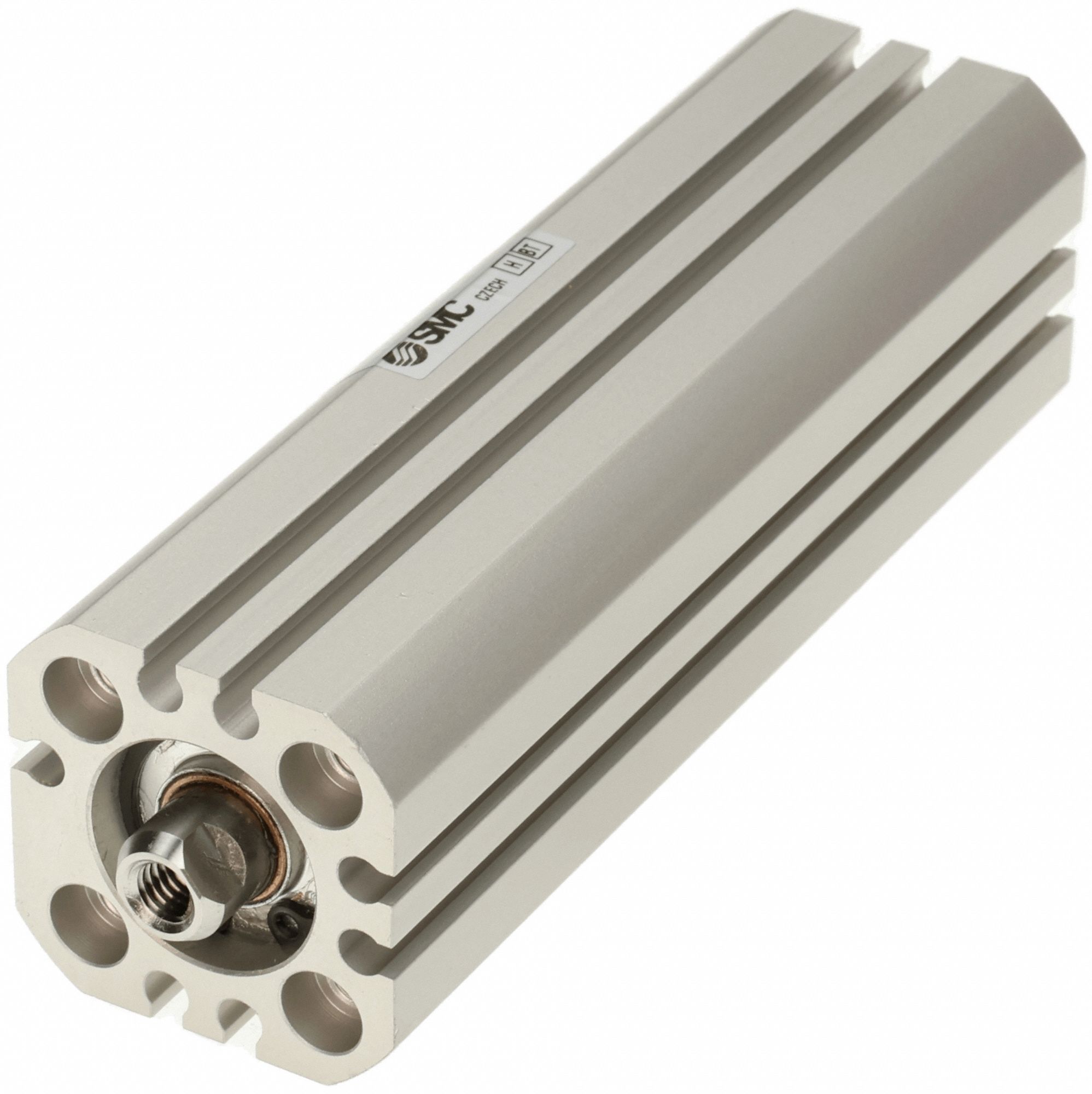

Smc 3G-OTH-189569 — Technical Specifications

Name: Smc 3G-OTH-189569 SMC Compact Cylinder: 25 mm Bore Dia, 25 mm Stroke Lg, Tapped Hole/Through Hole Mounting, Aluminum (MPN CD55B25-25). Key specifications — attr946022: Tapped Hole; attr946024: Single Rod; attr946038: C55; attr1123057: Rotating Rod; attr945997: SMC.
Brand: Smc

The SMC Compact Cylinder (SKU 826DC4, MPN CD55B25-25) is a through-hole mount compact cylinder from the C55 series, featuring a 25 mm bore diameter and 25 mm stroke length. It is a single-rod, rotating-rod cylinder with tapped-hole mounting, constructed from aluminum. This product is designed for applications requiring a compact, rotating-rod pneumatic actuator.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Tapped Hole/Through Hole Mounting, Aluminum
Stroke Lg	25 mm
Manufacturer Part Number	CD55B25-25
