Solahd 3G-OTH-22615 — Technical Specifications

Name: Solahd 3G-OTH-22615 SOLAHD Surge Protection Device: Single Phase, 120V AC, 1 Poles, 2 + Ground Wires, L-G/L-N/N-G, 5kAIC (MPN STFE10010N). Key specifications — Voltage: 120V AC; Number of Wires: 2 Wires + Ground; Modes of Protection: N-G; Max. Continuing Operating Voltage: 150 V AC; Voltage Protection Rating: 500V (L-G, N-G); Short Circuit Current Rating: 5kAIC; Filtering: Yes; Enclosure Material: Metal.
Brand: Solahd

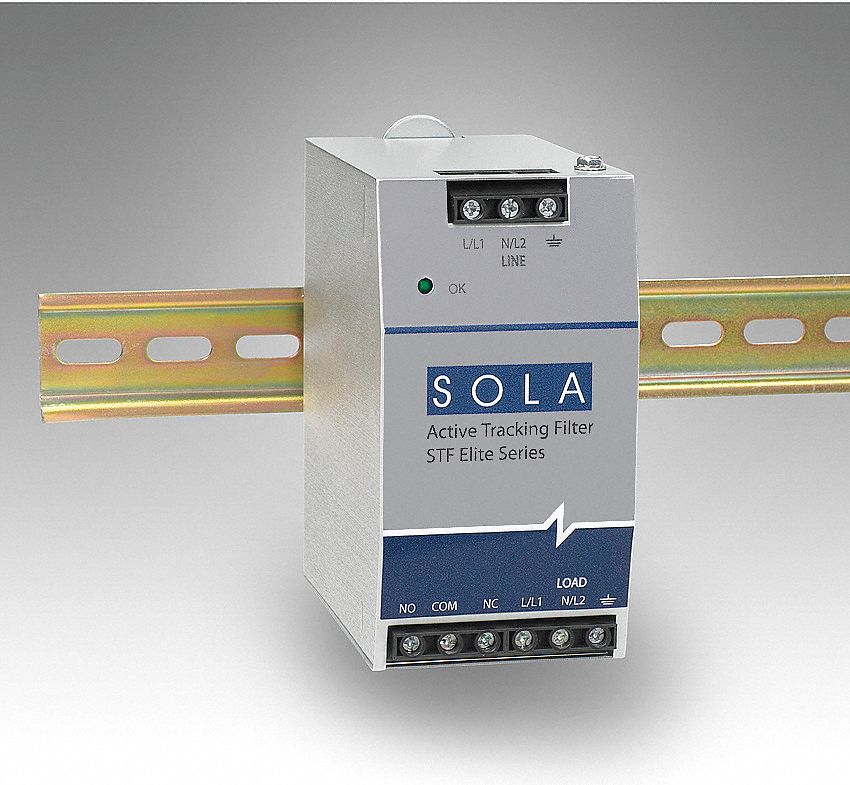

The SOLAHD STFE10010N is a single-phase DIN Rail internal-mount surge protection device (SPD) with a metal enclosure. It operates at 120V AC with a maximum continuous operating voltage of 150V AC and provides N-G mode protection. The unit features a voltage protection rating of 500V (L-G, N-G), a short-circuit current rating of 5kAIC, and includes filtering for 2 wires plus ground.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120V
Type	2 + Ground Wires, L-G/L-N/N-G, 5kAIC
Brand	SOLAHD
Poles	1
Voltage	120V AC
Filtering	Yes
Mounting Style	DIN-Rail
Number Of Wires	2 Wires + Ground
Enclosure Material	Metal
Modes Of Protection	N-G
Manufacturer Part Number	STFE10010N
Voltage Protection Rating	500V (L-G, N-G)
Short Circuit Current Rating	5kAIC
Max. Continuing Operating Voltage	150 V AC
