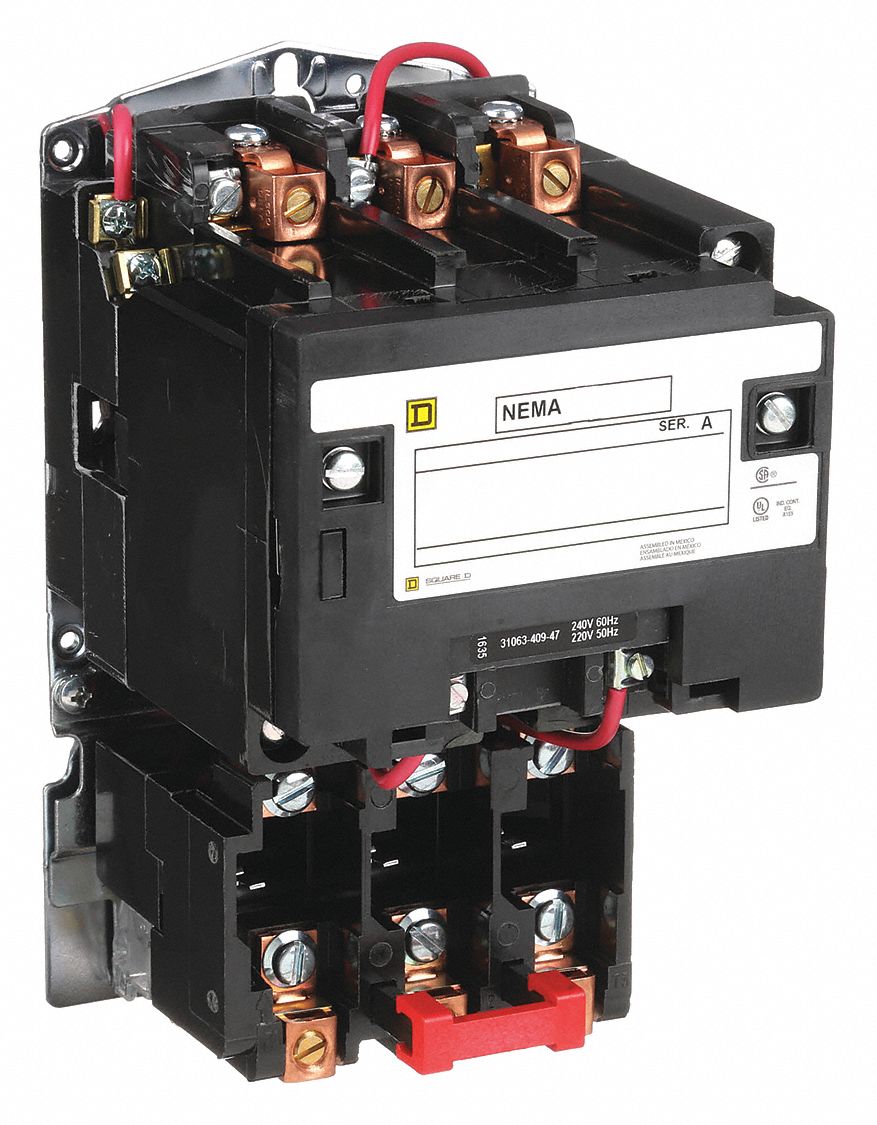

Square D 3G-OTH-41581 — Technical Specifications
The SQUARE D Magnetic Motor Starter is a non-reversing starter with thermal overloads, designed for three-phase applications. This NEMA Size 2 unit features a 45 A rating and a 220/240V AC coil, with screw clamp terminals for secure wiring. It requires three melting alloy thermal units (not included) and includes no auxiliary contacts or operator controls.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 240V |
| Operator | None |
| Coil Voltage | 220/240V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SDO1V03 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
