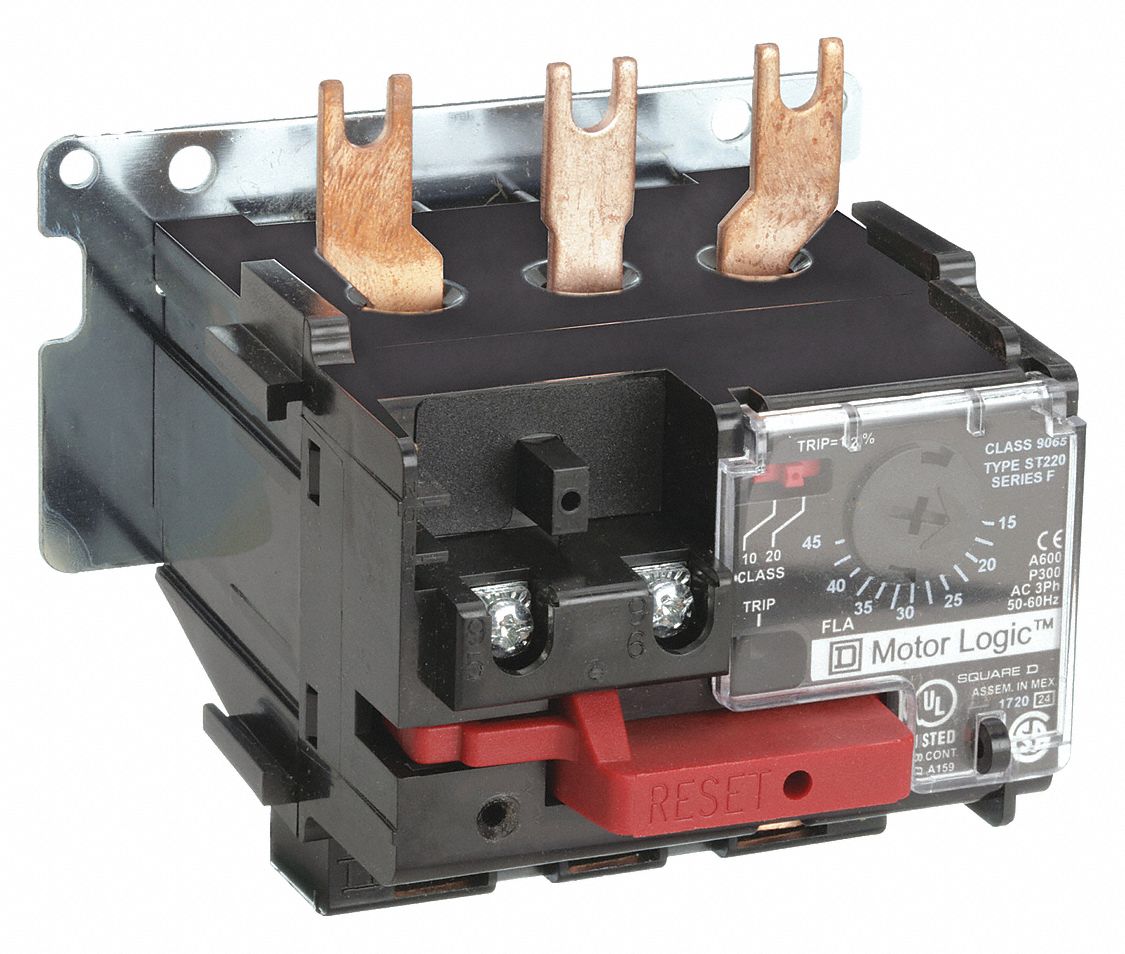

Square D 3G-OTH-40756 — Technical Specifications

Name: Square D 3G-OTH-40756 SQUARE D NEMA Overload Relay: Electronic Protection, 3 Poles, NEMA Size 2, 15 A – 45 A (MPN 9065ST220). Key specifications — Brand: SQUARE D; Maximum Voltage Rating: 600V AC; Compatible Contactor Series: 9065 Motor Logic Solid State Overload Relays; Phase: Three; Thermal Units Required: Not Applicable to Electronic Type Overload Relays.
Brand: Square D

The SQUARE D NEMA Overload Relay: Electronic Protection (MPN 9065ST220) is a three-phase, NEMA Size 2 electronic overload relay rated for 15 A to 45 A and a maximum voltage of 600V AC. It is compatible with the 9065 Motor Logic Solid State Overload Relays contactor series and does not require thermal units.

View Product & Quote

Technical Specifications

Parameter	Value
Type	NEMA Size 2, 15 A – 45 A
Brand	SQUARE D
Phase	Three
Poles	3
Maximum Voltage Rating	600V AC
Thermal Units Required	Not Applicable to Electronic Type Overload Relays
Manufacturer Part Number	9065ST220
Compatible Contactor Series	9065 Motor Logic Solid State Overload Relays
