Square D 3G-OTH-41148 — Technical Specifications

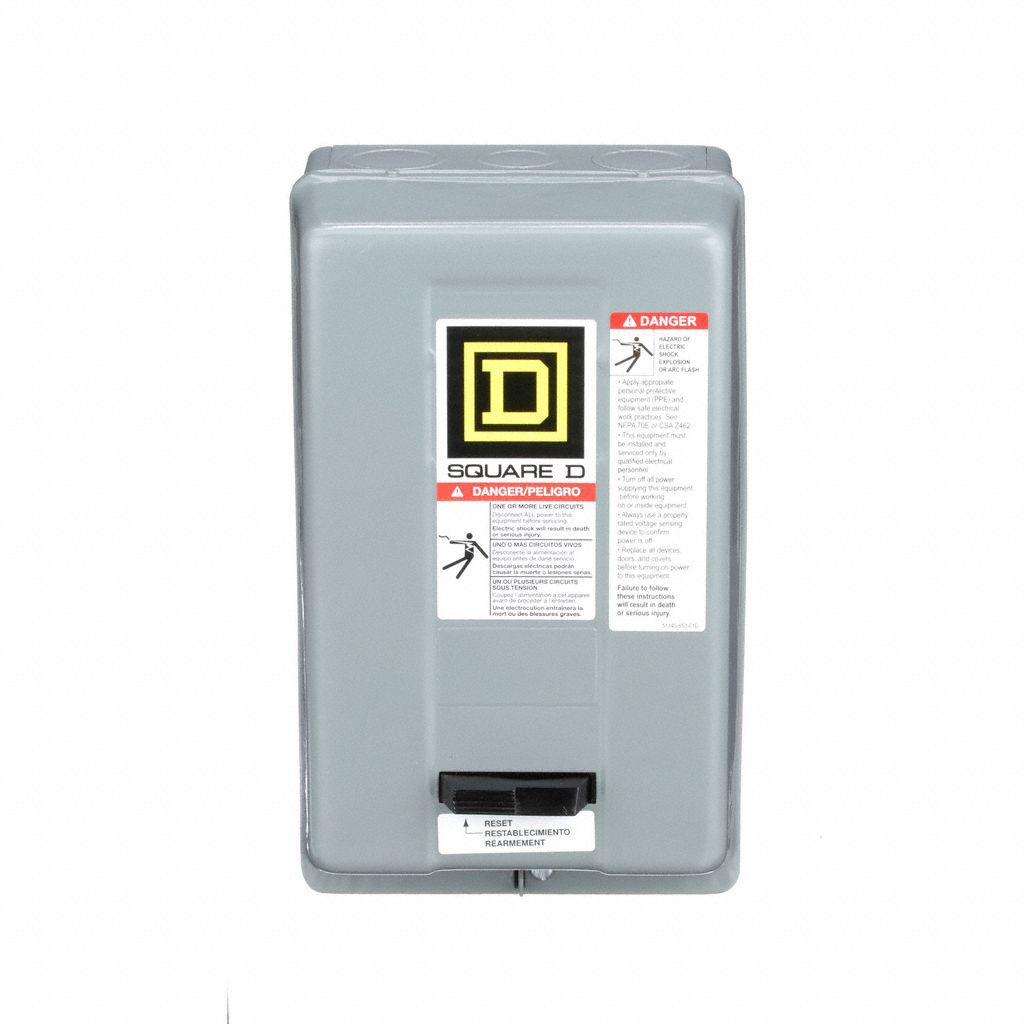

The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, featuring a 24V AC coil, three-phase operation, and NEMA Size 00 rating at 9 A. It includes screw clamp terminals and requires three melting alloy thermal units (not included). This unit has no operator, operator controls, pilot light, or auxiliary contacts.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 00, 9 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 24V |
| Operator | None |
| Coil Voltage | 24V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SAG12V01S |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
