Square D 3G-OTH-22613 — Technical Specifications

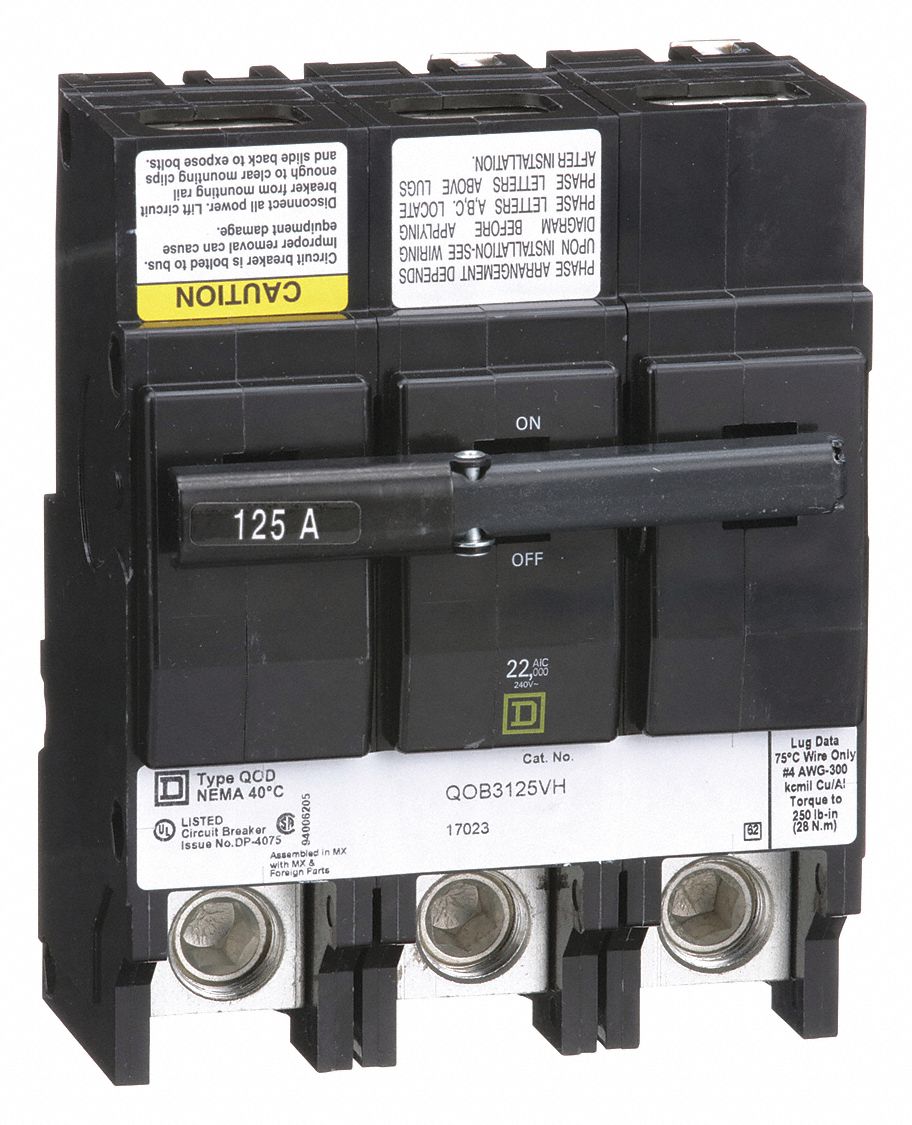

The SQUARE D QOB3125VH is a 125 A, three-phase miniature circuit breaker from the QOB Series, designed for bolt-on installation in Square D NQOD panelboards. It carries a maximum AIR rating of 22kA at 120/240V AC and an AC voltage rating of 120/240V AC.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120/240V |
| Amps | 125 A |
| Type | Three Phase, 22kA at 120/240V AC |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| For Use With | Square D NQOD Panelboards |
| Max. AIR Rating | 22kA at 120/240V AC |
| AC Voltage Rating | 120/240V AC |
| Manufacturer Part Number | QOB3125VH |
