Square D 3G-OTH-23260 — Technical Specifications

Name: Square D 3G-OTH-23260 SQUARE D Miniature Circuit Breaker: 60 A, 120/240V AC, Single Phase, 22kA at 120/240V AC, 1 Poles (MPN QOU160VH). Key specifications — Phase: Single; Amps: 60 A; AC Voltage Rating: 120/240V AC; Max. AIR Rating: 22kA at 120/240V AC; For Use With: Heating; Brand: SQUARE D.
Brand: Square D

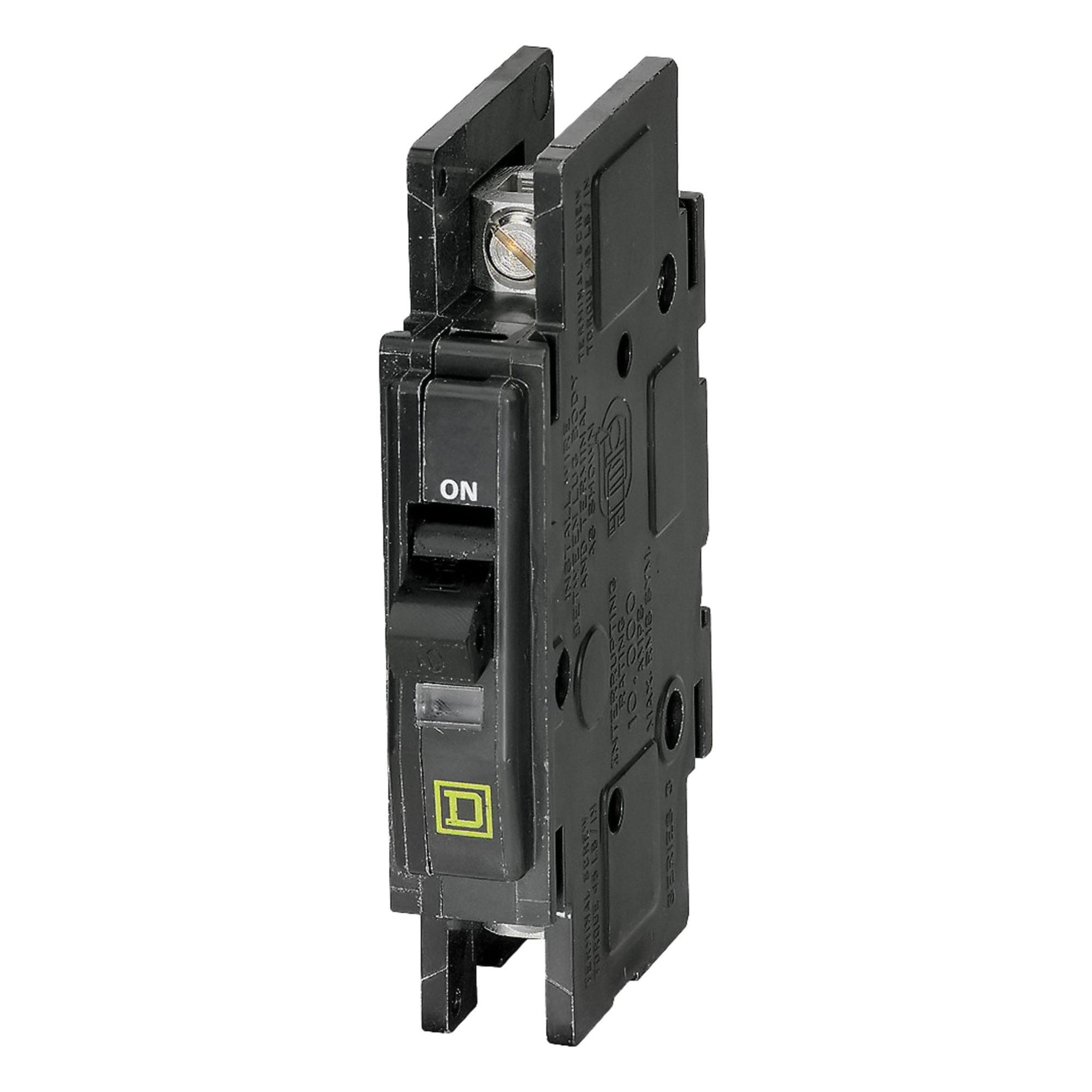

The SQUARE D QOU160VH is a 60 A, single-phase, unit-mount miniature circuit breaker from the QOU Series, designed for use with heating applications. It has an AC voltage rating of 120/240V AC and a maximum AIR rating of 22kA at 120/240V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	120/240V
Amps	60 A
Type	Single Phase, 22kA at 120/240V AC
Brand	SQUARE D
Phase	Single
Poles	1
For Use With	Heating
Max. AIR Rating	22kA at 120/240V AC
AC Voltage Rating	120/240V AC
Manufacturer Part Number	QOU160VH
