Square D 3G-OTH-41961 — Technical Specifications

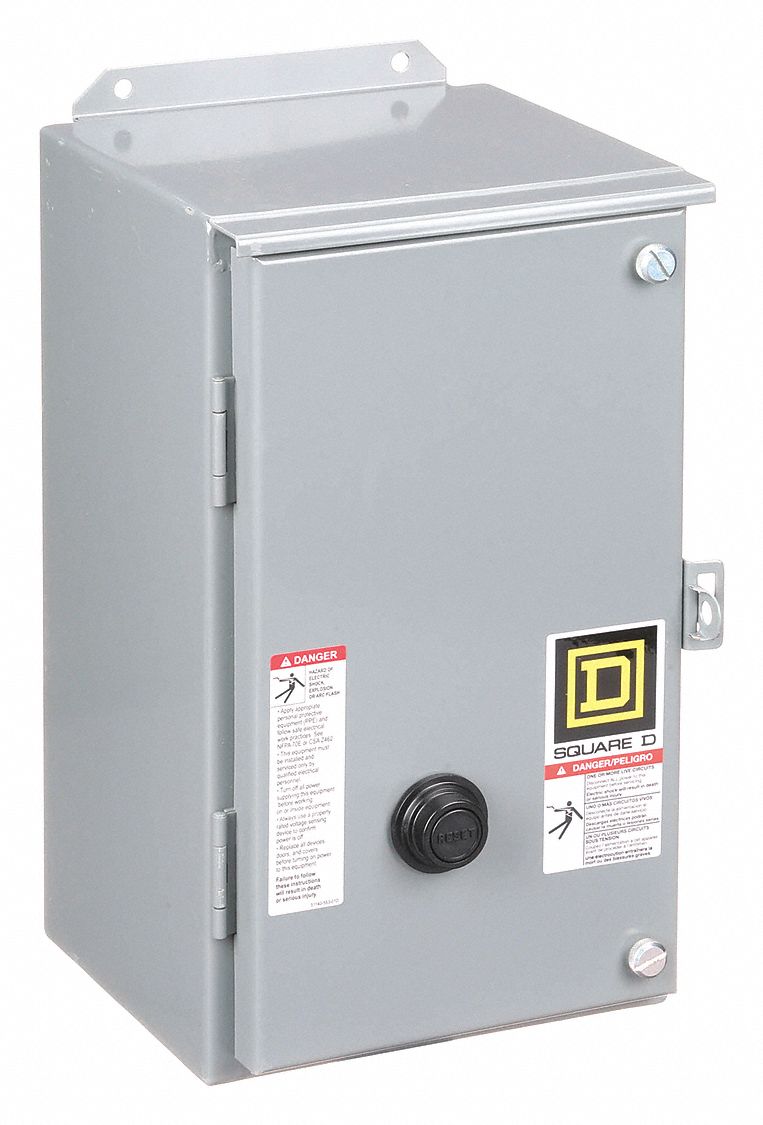

The SQUARE D Magnetic Motor Starter is an enclosed non-reversing starter with thermal overloads, NEMA Size 2, 3 poles, 45 A, and a 240V AC coil (MPN 8536SDA1V03). It is a three-phase unit with screw clamp terminals, no operator controls, no auxiliary contacts, and no pilot light. Three melting alloy thermal units are required but not included.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 240V |
| Operator | None |
| Coil Voltage | 240V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8536SDA1V03 |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
