Square D 3G-OTH-45167 — Technical Specifications

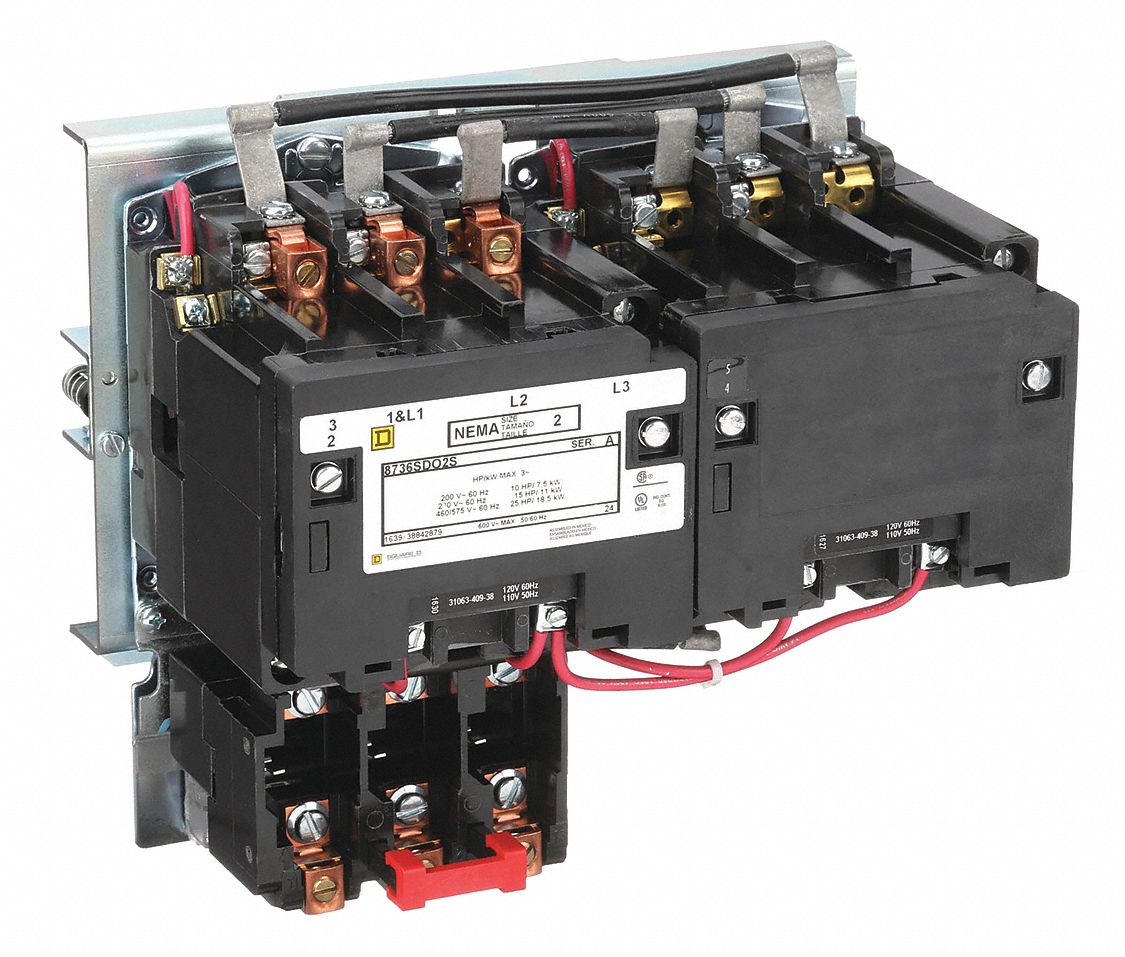

The SQUARE D Magnetic Motor Starter is a reversing starter with thermal overloads, NEMA Size 2, 3 Poles, 45 A, and a 120V AC coil (MPN 8736SDO2V02S). It is a three-phase unit with screw clamp terminals and requires 3 melting alloy thermal units (not included). This starter has no operator, no operator controls, no auxiliary contacts, and no pilot light.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | NEMA Size 2, 45 A |
| Brand | SQUARE D |
| Phase | Three |
| Poles | 3 |
| AC Coil | 120V |
| Operator | None |
| Coil Voltage | 120V AC |
| Operator Controls | None |
| Includes Pilot Light | No |
| Thermal Units Required | 3 Melting Alloy Units (Not Included) |
| Manufacturer Part Number | 8736SDO2V02S |
| Terminal Connection Type | Screw Clamp Terminals |
| Auxiliary Contacts Included | No Auxiliary Contacts Included |
