Square D 3G-OTH-22858 — Technical Specifications

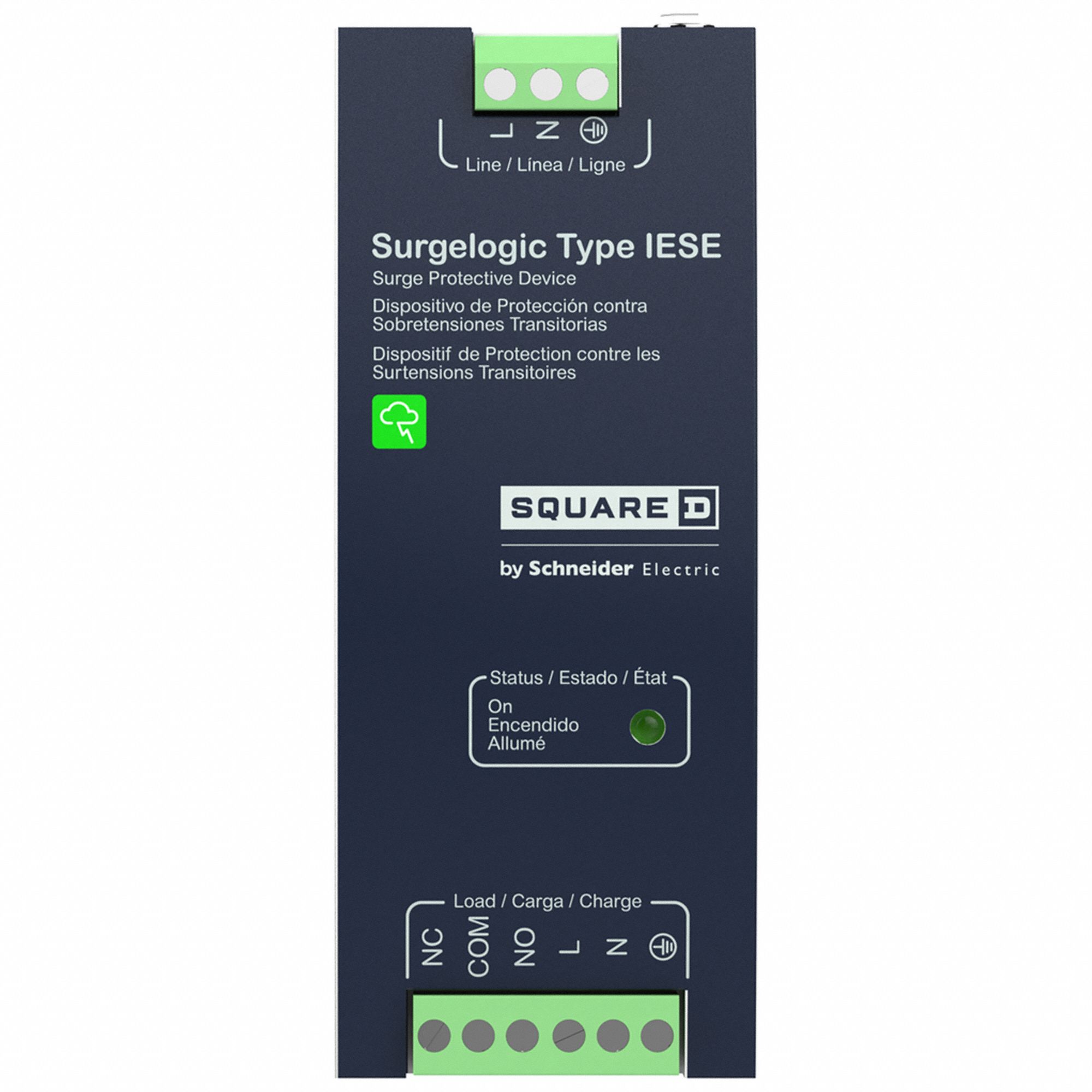

The SQUARE D Surge Protection Device is a single-phase, DIN Rail internal-mount SPD with a flange mounting style. It operates at 120V AC with 3 wires and provides L-N mode protection at a 150 V(L-N) voltage protection rating. The unit includes filtering and is identified by manufacturer part number HFNF120IESE005.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 120V |
| Type | L-N |
| Brand | SQUARE D |
| Poles | 2 |
| Wires | 3 |
| V(L-N) | 150 |
| Voltage | 120V AC |
| Filtering | Yes |
| Mounting Style | Flange |
| Number Of Wires | 3 Wires |
| Modes Of Protection | L-N |
| Manufacturer Part Number | HFNF120IESE005 |
| Voltage Protection Rating | 150 V(L-N) |
