Ssi 3G-OTH-447526 — Technical Specifications

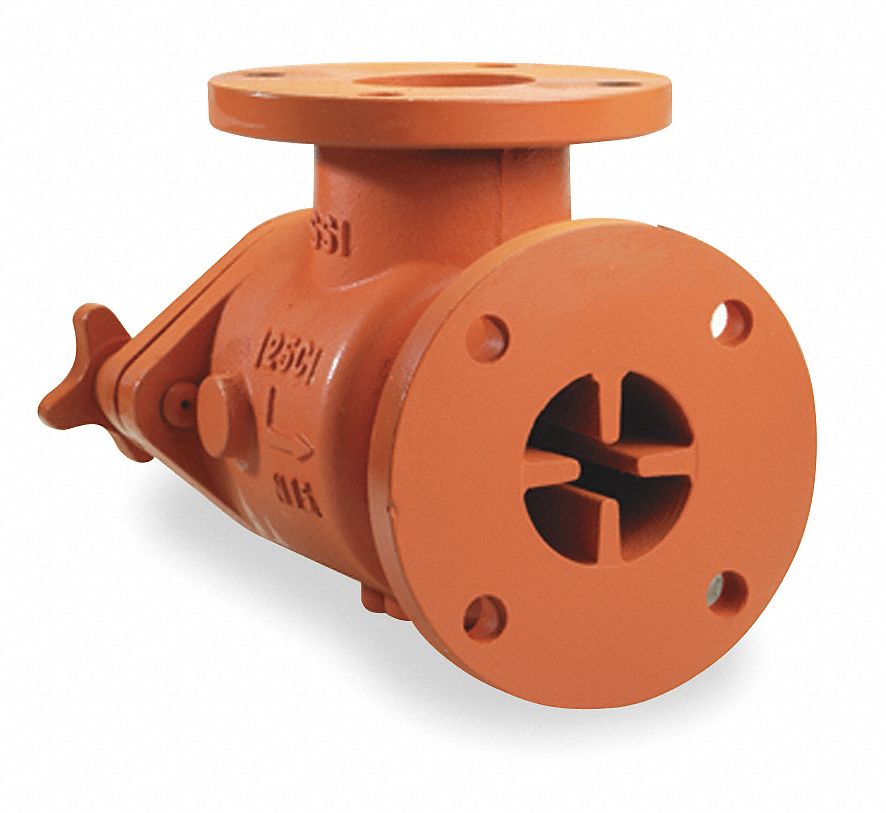

The SSI Strainer: 2 in is a suction diffusion strainer from SSI, featuring a cast iron body, 304 stainless steel screen, and Buna-N seal. It has a 2-inch inlet with a 1 1/2-inch outlet connection size, FF flange, and a length of 10 1/4 inches (MPN 0200-125SFIG-42). The screen mesh size is 0.0331 inches.
Technical Specifications
| Parameter | Value |
|---|---|
| Lg | 10 1/4 in |
| Type | FF Flange, Cast Iron, 0.0331 in |
| Brand | SSI |
| Body Material | Cast Iron |
| Seal Material | Buna-N |
| Screen Material | 304 Stainless Steel |
| Outlet Connection Size | 1 1/2 in |
| Manufacturer Part Number | 0200-125SFIG-42 |
