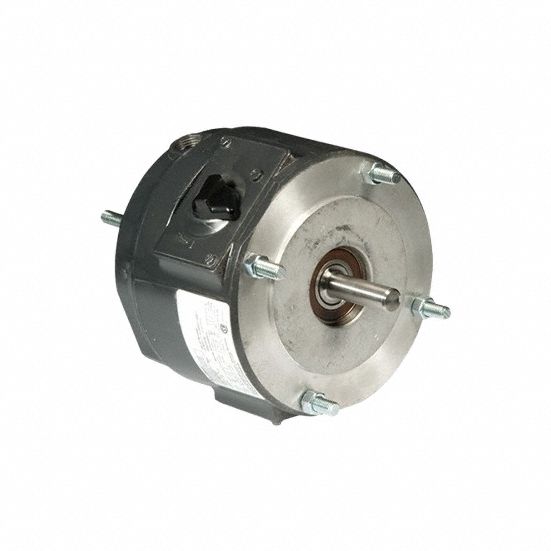

Stearns 3G-OTH-109883 — Technical Specifications
The STEARNS Spring-Set Holding Brake (ERS) is a combined clutch and brake unit designed for use with C-Face motors. It features a totally enclosed wash down enclosure and is compatible with motor frame designations 143TC, 145TC, and NEMA 56C. The unit operates with a 230/460V AC supply and has a 5/8 in bore size (MPN 105672205 QF).
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 230/460V |
| Brand | STEARNS |
| Bore Size | 5/8 in |
| For Use With | C-Face Motors |
| Enclosure Type | Totally Enclosed Wash Down |
| Clutch/Brake Type | Spring-Set Holding Brake (ERS) |
| Mounting Location | C-Face Motor |
| Motor Frame Designation | 143TC |
| Manufacturer Part Number | 105672205 QF |
