Superstrut 3G-OTH-04712 — Technical Specifications

Name: Superstrut 3G-OTH-04712 Beam Clamp: Iron, 15/16 in, 1/4"-20 Thread Size, 1 1/4 in Overall Lg, 250 lb Load Capacity (MPN 500-SC). Key specifications — Beam Flange Thickness: 15/16 in; Load Capacity: 250 lb; Overall Length: 1-1/4 in; Overall Width: 1 in; Material: Iron; Finish: Zinc Plated; Thread Size: 1/4"-20; Mounting Style: Clamp On.
Brand: Superstrut

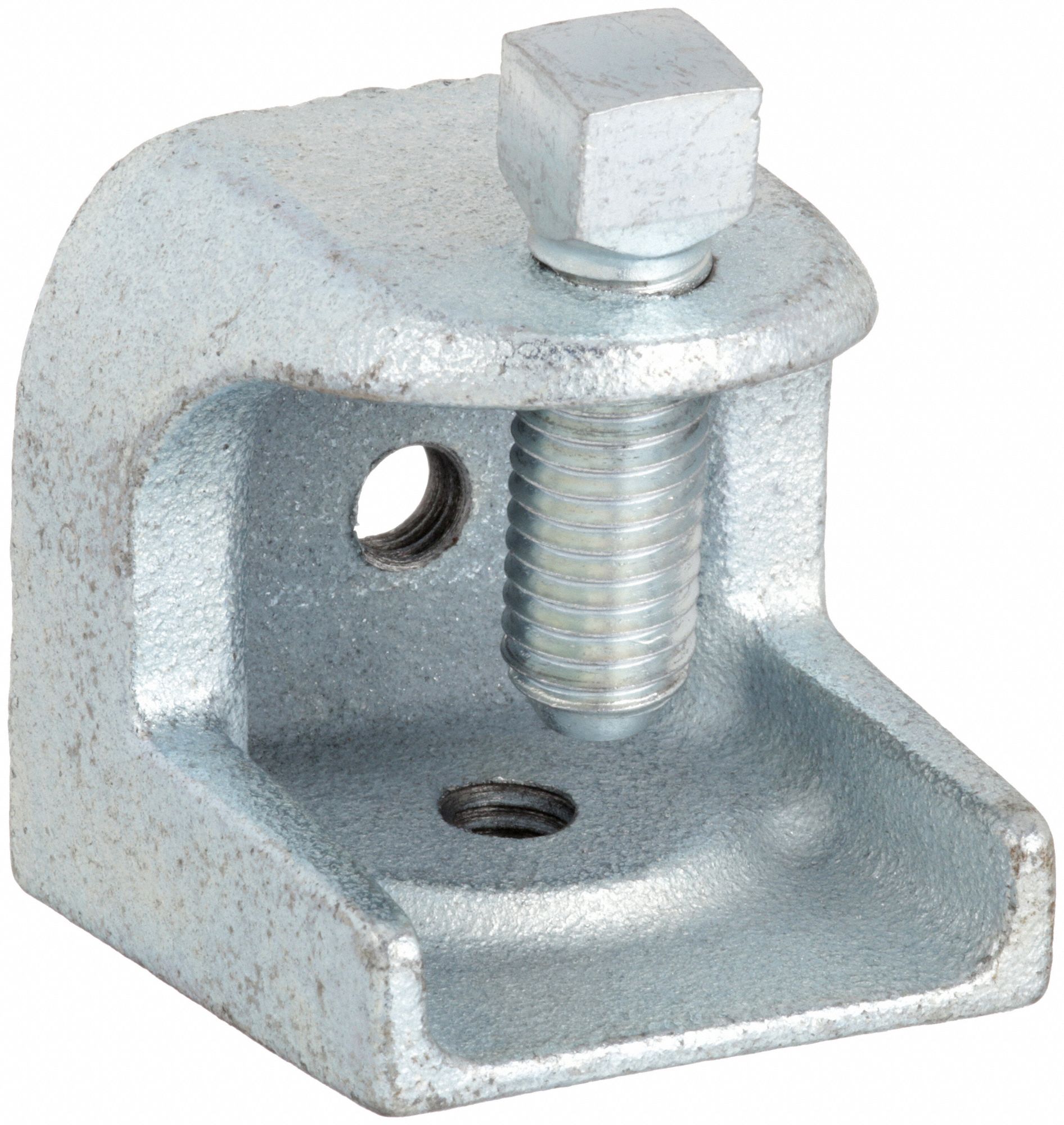

The SUPERSTRUT Beam Clamp (SKU 20LA58, MPN 500-SC) is an iron beam, wire rod, and purlin clamp with a zinc-plated finish. It features a 1/4"-20 thread size, a 250 lb load capacity, and a clamp-on mounting style for use with girders. The clamp accommodates a beam flange thickness of 15/16 in and has an overall length of 1-1/4 in and width of 1 in. It meets ASTM B633 standards and is compatible with threaded rod.

View Product & Quote

Technical Specifications

Parameter	Value
Type	15/16 in
Finish	Zinc Plated
UNSPSC	31162905
Material	Iron
Standards	ASTM B633
Overall Lg	1 1/4 in
Thread Size	1/4"-20
For Use With	Girders
Load Capacity	250 lb
Overall Width	1 in
Mounting Style	Clamp On
Overall Length	1-1/4 in
Country Of Origin	China (subject to change)
Beam Flange Thickness	15/16 in
Compatible Product Type	Threaded Rod
Manufacturer Part Number	500-SC

Physical & Shipping Data

Weight	4.536 kg
Country of Origin	China
