Superstrut 3G-OTH-04612 — Technical Specifications

Name: Superstrut 3G-OTH-04612 Beam Clamp: Iron, 7/8 in, 5/16"-18 Thread Size, 1 11/16 in Overall Lg, 500 lb Load Capacity (MPN 501). Key specifications — Beam Flange Thickness: 7/8 in; Load Capacity: 500 lb; Overall Length: 1-11/16 in; Overall Width: 1-1/2 in; Material: Iron; Finish: Zinc Plated; Thread Size: 5/16"-18; Mounting Style: Clamp On.
Brand: Superstrut

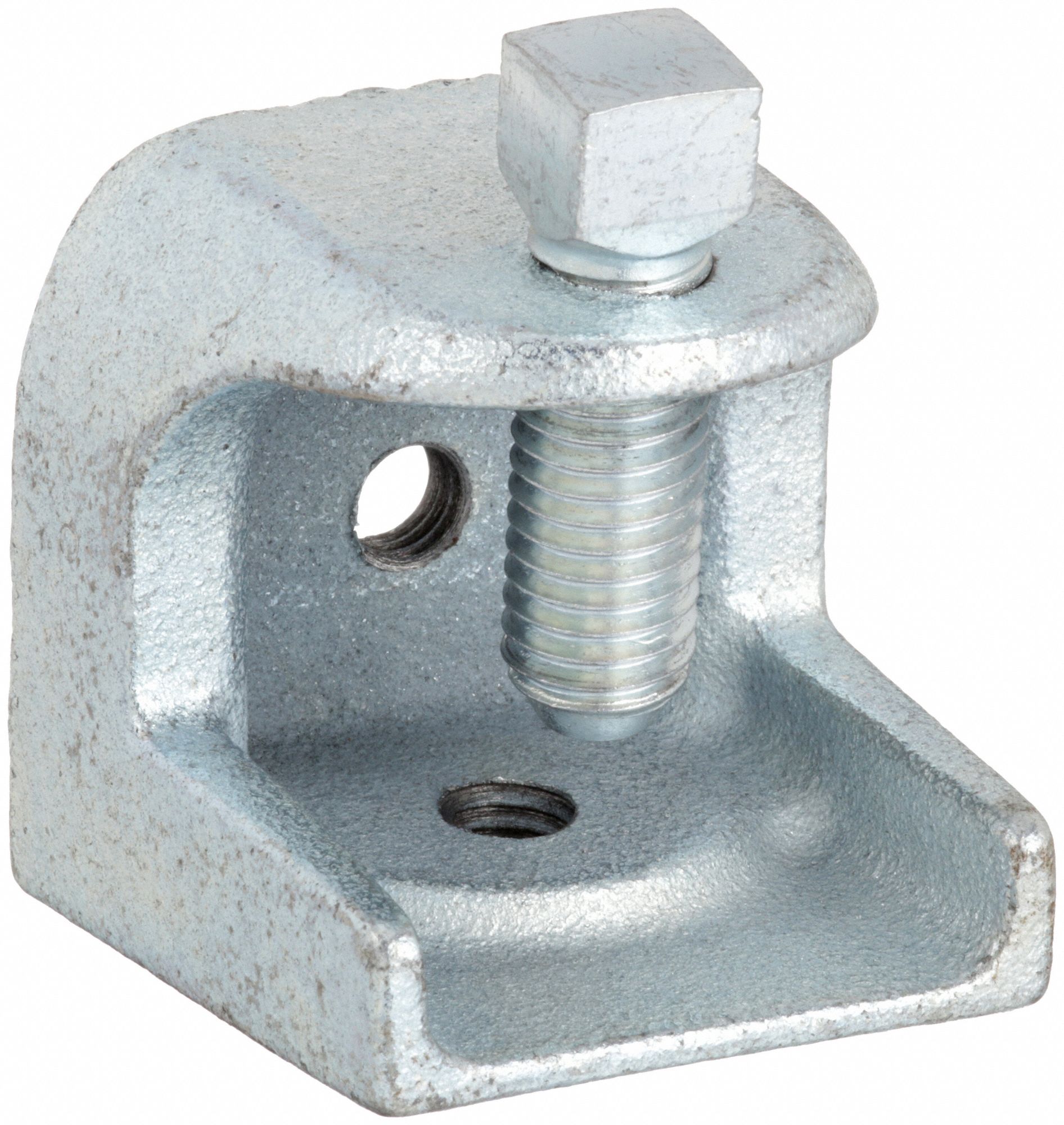

The SUPERSTRUT Beam Clamp: Iron (SKU 20LA59) is a clamp-on beam, wire rod, and purlin clamp made of iron with a zinc-plated finish. It features a 5/16"-18 thread size, a load capacity of 500 lb, and accommodates beam flanges up to 7/8 in thick. With an overall length of 1-11/16 in and width of 1-1/2 in, it is designed for use with girders and compatible with threaded rod, meeting ASTM B633 standards.

View Product & Quote

Technical Specifications

Parameter	Value
Type	7/8 in
Finish	Zinc Plated
UNSPSC	31162905
Material	Iron
Standards	ASTM B633
Overall Lg	1 11/16 in
Thread Size	5/16"-18
For Use With	Girders
Load Capacity	500 lb
Overall Width	1-1/2 in
Mounting Style	Clamp On
Overall Length	1-11/16 in
Country Of Origin	China (subject to change)
Beam Flange Thickness	7/8 in
Compatible Product Type	Threaded Rod
Manufacturer Part Number	501

Physical & Shipping Data

Weight	11.19 kg
Country of Origin	China
