Thomson 3G-OTH-123555 — Technical Specifications

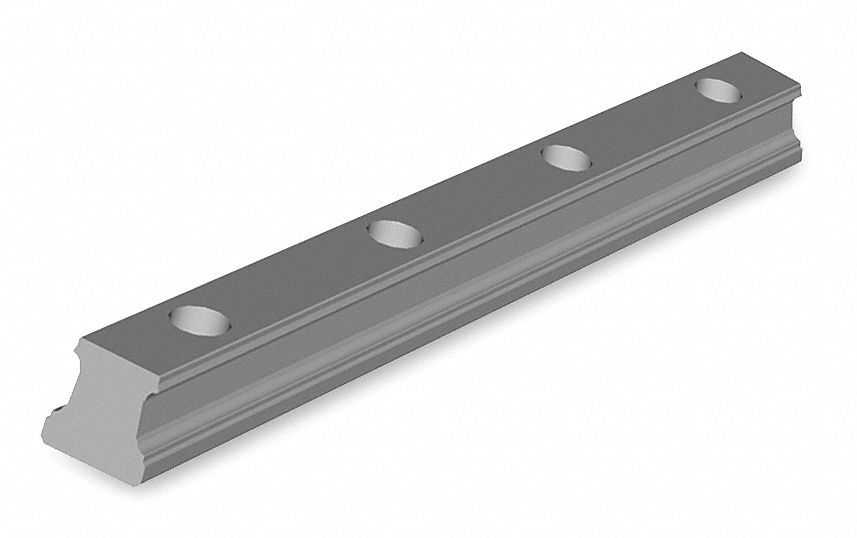

The Thomson 500 Series Profile Ball Rail: 30 (MPN 521H30ARL3000) is a steel linear motion rail with a nominal size of 30, an overall length of 3,000 mm, an overall width of 28 mm, and an overall height of 26 mm. It features six rail holes and is designed for use in industrial automation and material handling applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 30 |
| Type | Steel |
| Brand | THOMSON |
| Overall Ht | 26 mm |
| Overall Lg | 3,000 mm |
| Overall Wd | 28 mm |
| Rail Holes | 6 |
| Nominal Rail Size | 30 |
| Manufacturer Part Number | 521H30ARL3000 |
