Thomson 3G-OTH-123719 — Technical Specifications

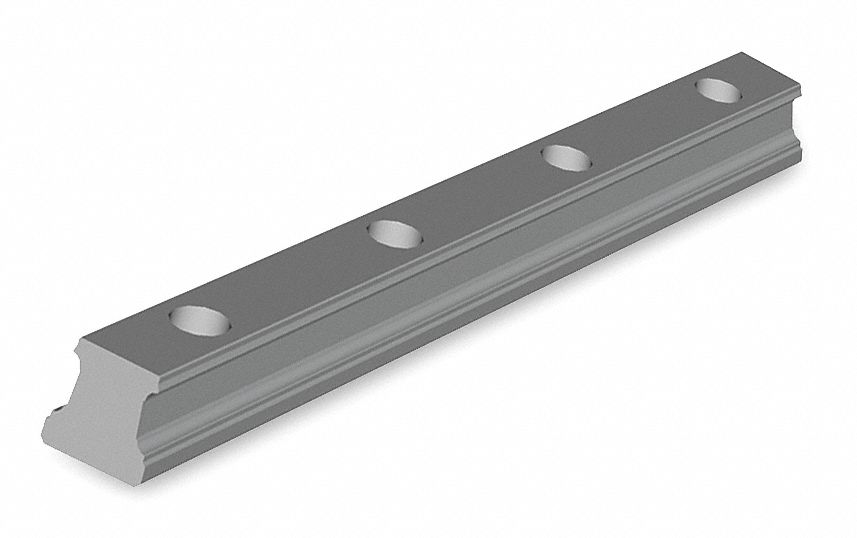

The Thomson 500 Series Profile Ball Rail, model 35 (MPN 521H35A+600), is a steel linear motion rail from THOMSON. It has a 600 mm overall length, 34 mm overall width, and 29.5 mm overall height, with 6 rail holes and a nominal rail size of 35.
Technical Specifications
| Parameter | Value |
|---|---|
| Size | 35 |
| Type | Steel |
| Brand | THOMSON |
| Overall Ht | 29.5 mm |
| Overall Lg | 600 mm |
| Overall Wd | 34 mm |
| Rail Holes | 6 |
| Nominal Rail Size | 35 |
| Manufacturer Part Number | 521H35A+600 |
