Townsteel 3G-OTH-499333 — Technical Specifications

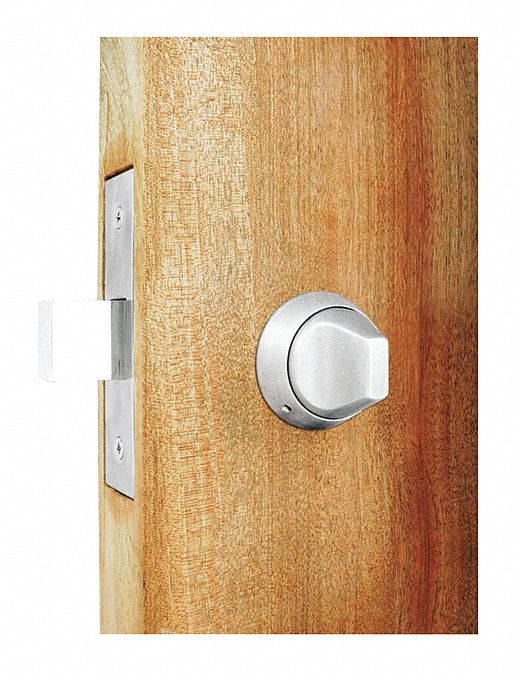

The TOWNSTEEL DRX-18-630 is a ligature-resistant mortise deadbolt lock with an interchangeable core cylinder, designed for doors up to 1 3/4 inches thick. It features a satin stainless steel finish, a Schlage keyway, and includes the core. This ADA-compliant lock provides a secure, tamper-resistant solution for institutional environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Interchangeable Core, 1 3/4 in Door Thick - Max, Stainless Steel |
| Brand | TOWNSTEEL |
| Finish | Satin Stainless Steel |
| Keyway Type | Schlage |
| ADA Compliant | Yes |
| Includes Core | Core Included |
| Cylinder Core Type | Interchangeable Core Cylinder |
| Ligature Resistance | Ligature-Resistant |
| Manufacturer Part Number | DRX-18-630 |
| Visual Indicator Message | No Message |
