Tritan 3G-OTH-99236 — Technical Specifications

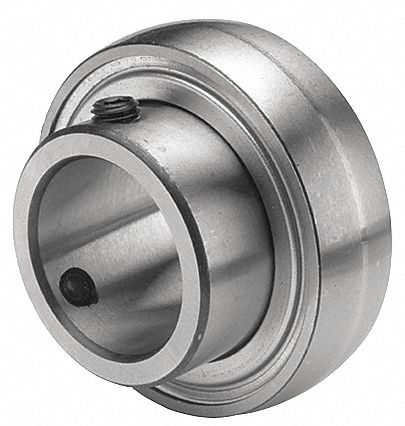

The TRITAN SB202-10 is a general purpose spherical insert bearing with a radial/deep groove ball design. It features a 5/8 in bore, 1 9/16 in OD, and 0.468 in outer ring width, with double sealed closure and set screw locking. This inch-system bearing is identified by industry number SB202-10.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 1 9/16 in |
| Bore | 5/8 in |
| Type | Set Screws |
| Brand | TRITAN |
| Closure | Double Sealed |
| Outer Ring Wd | 0.468 in |
| Bearing Insert Type | Radial/Deep Groove Ball |
| System Of Measurement | Inch |
| Bearing Industry Number | SB202-10 |
| Manufacturer Part Number | SB202-10 |
