Tritan 3G-OTH-101750 — Technical Specifications

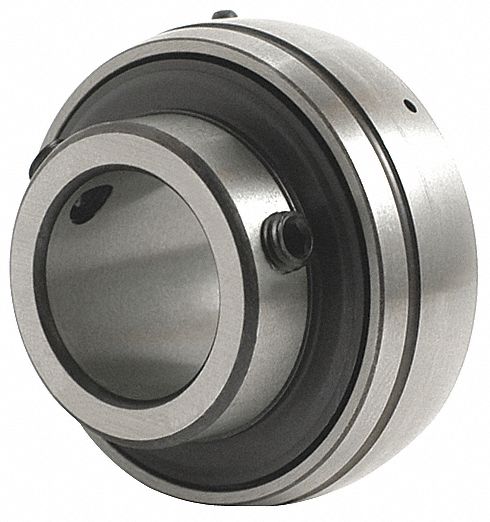

The TRITAN UC210-50MM is a metric general purpose spherical insert bearing with a radial/deep groove ball design. It features a 50 mm bore, 90 mm outer diameter, and 24 mm outer ring width, with double sealed closure and set screw locking. This bearing is identified by the industry number UC210-50MM.
Technical Specifications
| Parameter | Value |
|---|---|
| OD | 90 mm |
| Bore | 50 mm |
| Type | Set Screws, Spherical |
| Brand | TRITAN |
| Closure | Double Sealed |
| Outer Ring Wd | 24 mm |
| Bearing Insert Type | Radial/Deep Groove Ball |
| System Of Measurement | Metric |
| Bearing Industry Number | UC210-50MM |
| Manufacturer Part Number | UC210-50MM |
