Tsubaki 3G-OTH-125630 — Technical Specifications

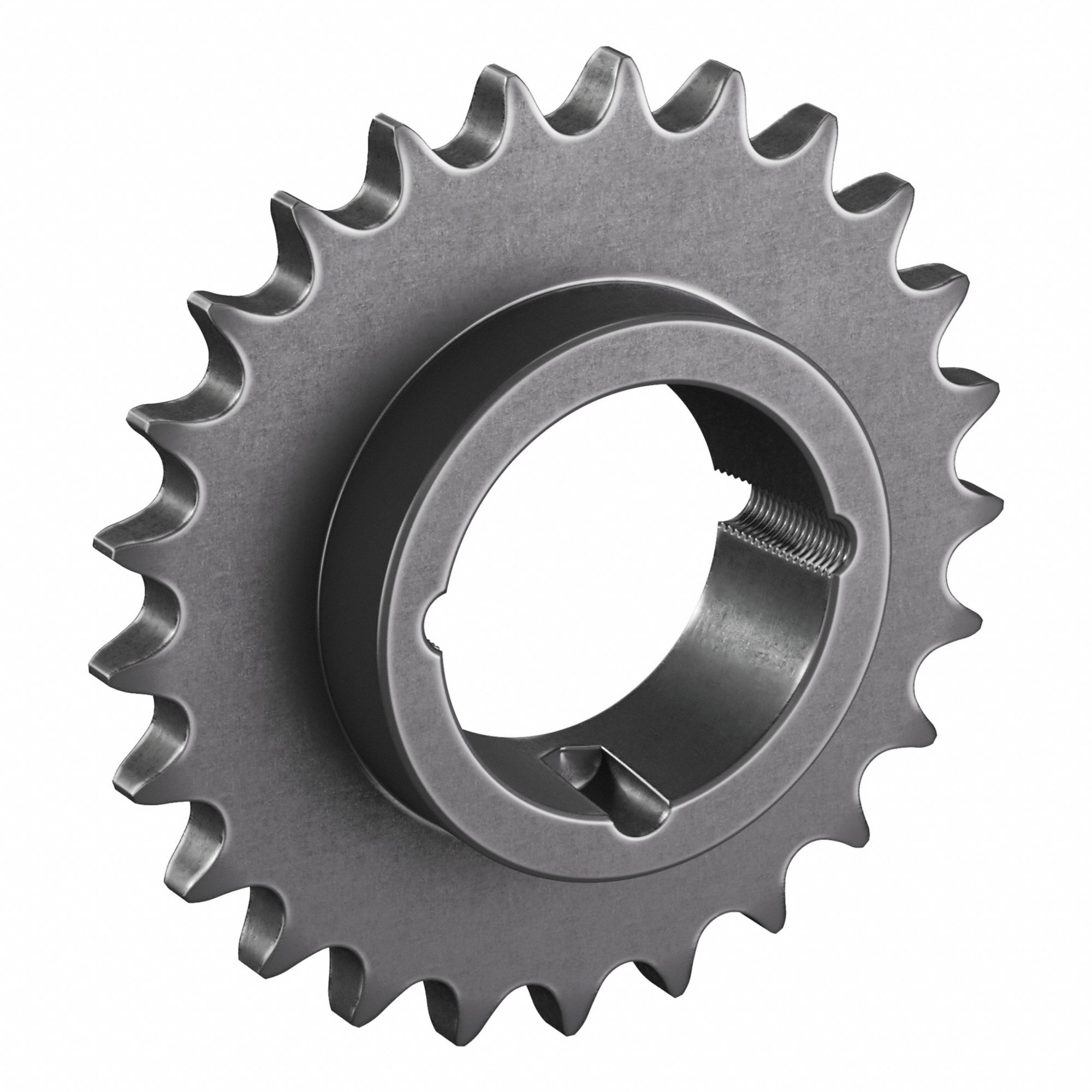

The TSUBAKI Sprocket is a Size 60 bushed-bore roller chain sprocket designed for ANSI 60 chain. It features 25 teeth, a 5.984-inch pitch diameter, and a 6.387-inch outside diameter, constructed from steel. This model (MPN 60BTL25) requires a 2012 series bushing for installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Steel, ANSI |
| Brand | TSUBAKI |
| Teeth | 25 |
| Pitch Dia | 5.984 in |
| Outside Dia | 6.387 in |
| Required Bushing Series | 2012 |
| Manufacturer Part Number | 60BTL25 |
