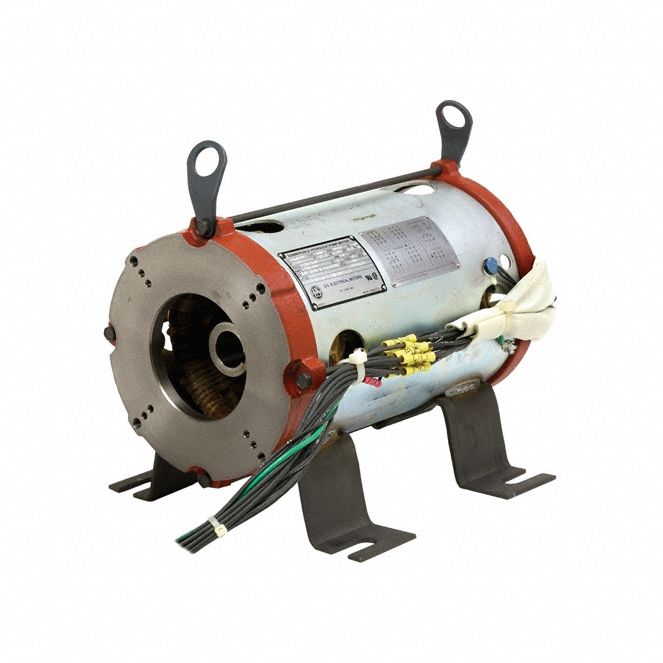

U.s. Motors 3G-OTH-54601 — Technical Specifications

Name: U.s. Motors 3G-OTH-54601 U.S. MOTORS Pump Motor: 160ZBS Frame Size, Rigid Base, Totally Enclosed Non-Ventilated, 20 hp (MPN EZ30S1HZ). Key specifications — Full Load Amps @ 60 Hz: 98.0 A; Brand: U.S. MOTORS; Frame Size: 160ZBS; Nameplate Voltage @ 60 Hz: 200V AC; Nameplate RPM @ 60 Hz: 3,405/3,435 RPM; Motor Enclosure: TENV.
Brand: U.s. Motors

The U.S. MOTORS EZ30S1HZ is a 20 hp submersible elevator motor with a 160ZBS frame size and a TENV enclosure. It operates at 3,405/3,435 RPM at 60 Hz, draws 98.0 A full load amps at 200V AC, and features a rigid base.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Rigid Base, Totally Enclosed Non-Ventilated, 20 hp
Brand	U.S. MOTORS
Frame Size	160ZBS
Motor Enclosure	TENV
MOTORS Pump Motor	160ZBS Frame Size
Nameplate RPM @ 60 Hz	3,405/3,435 RPM
Full Load Amps @ 60 Hz	98.0 A
Manufacturer Part Number	EZ30S1HZ
Nameplate Voltage @ 60 Hz	200V AC
