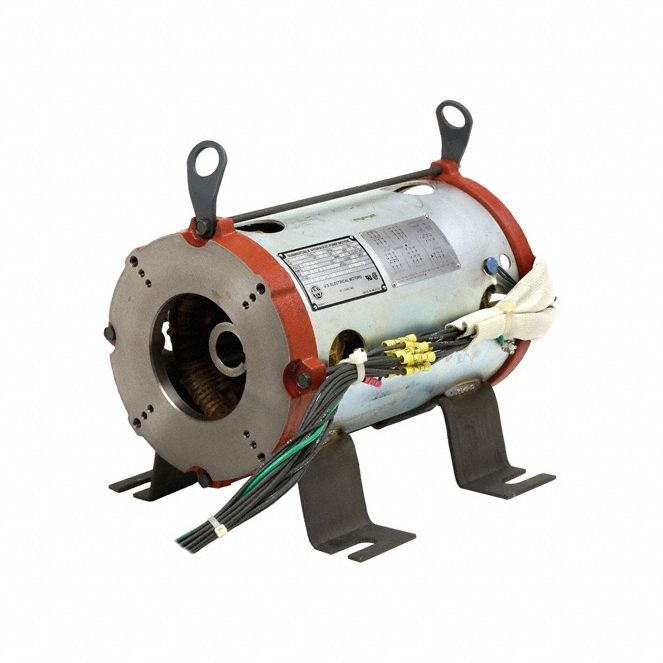

U.s. Motors 3G-OTH-54569 — Technical Specifications

Name: U.s. Motors 3G-OTH-54569 U.S. MOTORS Pump Motor: 160L Frame Size, Rigid Base, Totally Enclosed Non-Ventilated, 20 hp, 575V AC (MPN E40S1GZ). Key specifications — Full Load Amps @ 60 Hz: 42.0 A; Brand: U.S. MOTORS; Frame Size: 160L; Nameplate Voltage @ 60 Hz: 575V AC; Nameplate RPM @ 60 Hz: 3,460 RPM; Motor Enclosure: TENV.
Brand: U.s. Motors

The U.S. MOTORS E40S1GZ is a 20 hp submersible elevator motor with a 160L frame size and a totally enclosed non-ventilated (TENV) enclosure. It operates at 3,460 RPM and 575V AC at 60 Hz, drawing 42.0 full load amps. This motor is designed for industrial elevator applications requiring a rigid base mounting.

View Product & Quote

Technical Specifications

Parameter	Value
AC	575V
Type	Rigid Base, Totally Enclosed Non-Ventilated, 20 hp
Brand	U.S. MOTORS
Frame Size	160L
Motor Enclosure	TENV
MOTORS Pump Motor	160L Frame Size
Nameplate RPM @ 60 Hz	3,460 RPM
Full Load Amps @ 60 Hz	42.0 A
Manufacturer Part Number	E40S1GZ
Nameplate Voltage @ 60 Hz	575V AC
