U.s. Motors 3G-OTH-58219 — Technical Specifications

Name: U.s. Motors 3G-OTH-58219 U.S. MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 10 hp, 1,760 RPM (MPN S10P2ACR). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 26.6-24.0/12.0 A; Nameplate RPM @ 60 Hz: 1,760 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

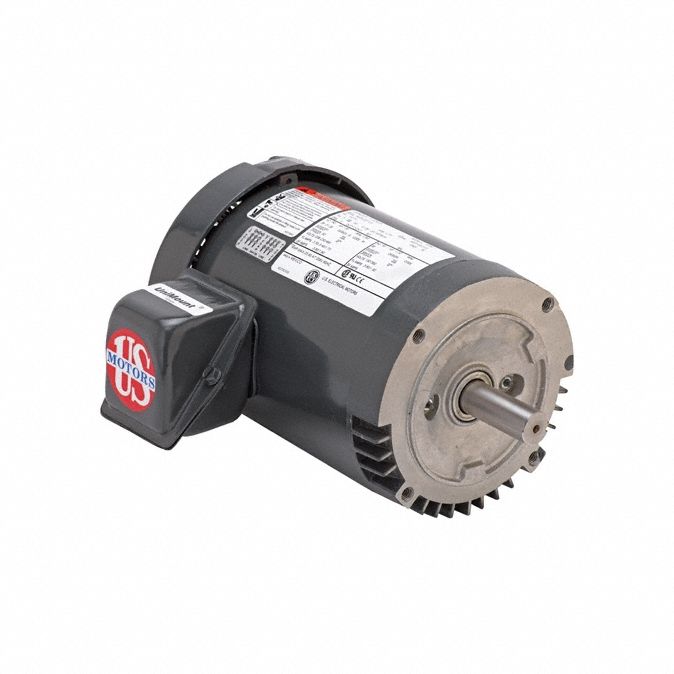

The U.S. MOTORS S10P2ACR is a 10 hp, 1,760 RPM C-Face with Rigid Base 3-Phase General Purpose AC Motor. It features a Totally Enclosed Fan Cooled (TEFC) enclosure and operates at 208-230/460V AC with a full load current of 26.6-24.0/12.0 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 10 hp, 1,760 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,760 RPM
Manufacturer Part Number	S10P2ACR
Full Load Current @ 60 Hz	26.6-24.0/12.0 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
MOTORS General Purpose Motor	Rigid Base Mount
