U.s. Motors 3G-OTH-57715 — Technical Specifications

Name: U.s. Motors 3G-OTH-57715 U.S. MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 10 hp, 575V AC (MPN S10P1GCR). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 575V AC; Full Load Current @ 60 Hz: 9.4 A; Nameplate RPM @ 60 Hz: 3,525 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

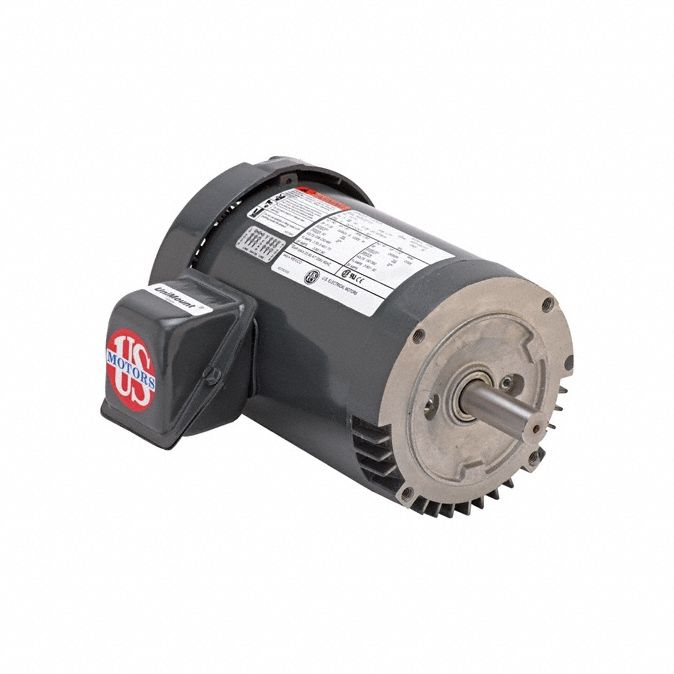

The U.S. MOTORS S10P1GCR is a 10 hp, 3-phase general purpose AC motor with a C-Face with Rigid Base mount and a TEFC enclosure. It operates at 3,525 RPM at 60 Hz, with a full load current of 9.4 A and a nameplate voltage of 575V AC.

View Product & Quote

Technical Specifications

Parameter	Value
AC	575V
Type	Totally Enclosed Fan Cooled, 10 hp
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,525 RPM
Manufacturer Part Number	S10P1GCR
Full Load Current @ 60 Hz	9.4 A
Nameplate Voltage @ 60 Hz	575V AC
MOTORS General Purpose Motor	Rigid Base Mount
