U.s. Motors 3G-OTH-55714 — Technical Specifications

Name: U.s. Motors 3G-OTH-55714 U.S. MOTORS General Purpose Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 3 hp, 1,175 RPM (MPN HD3P3EC). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 380V AC; Full Load Current @ 60 Hz: 9.3-8.8/4.4 A; Nameplate RPM @ 60 Hz: 1,175 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

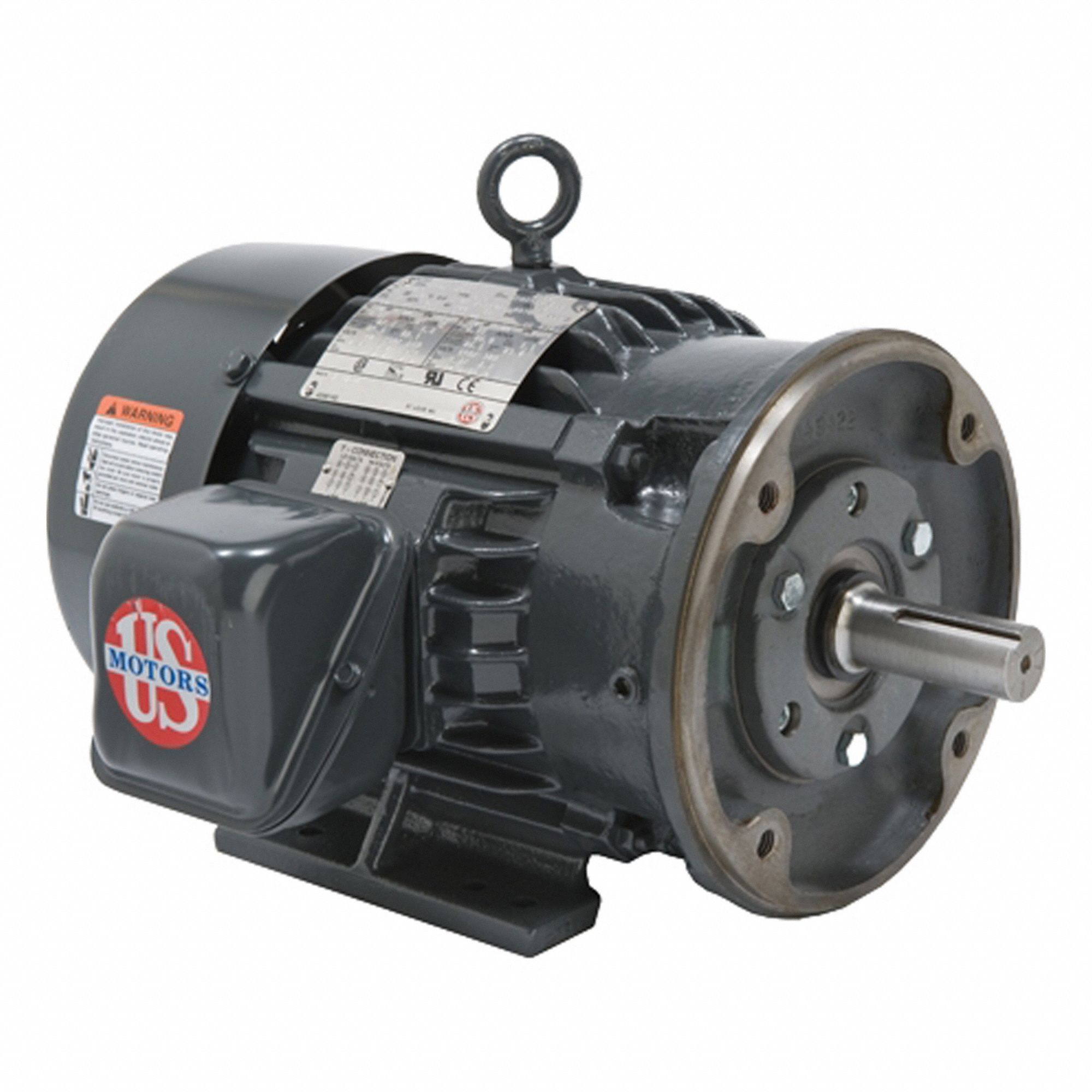

The U.S. MOTORS HD3P3EC is a C-Face with Rigid Base 3-Phase General Purpose AC Motor, featuring a TEFC enclosure. It delivers 3 hp at 1,175 RPM (60 Hz) with a nameplate voltage of 380V AC and a full load current of 9.3-8.8/4.4 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 3 hp, 1,175 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,175 RPM
Manufacturer Part Number	HD3P3EC
Full Load Current @ 60 Hz	9.3-8.8/4.4 A
Nameplate Voltage @ 60 Hz	380V AC
MOTORS General Purpose Motor	Rigid Base Mount
