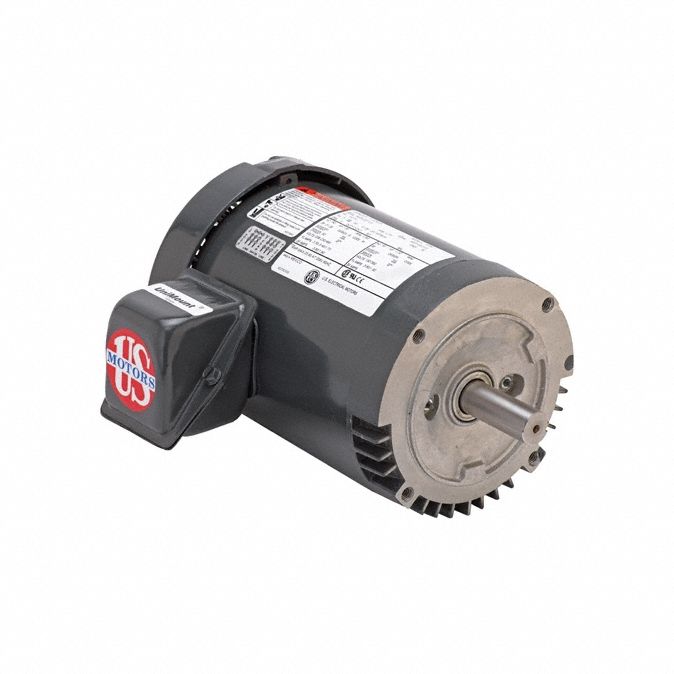

U.s. Motors 3G-OTH-54534 — Technical Specifications

Name: U.s. Motors 3G-OTH-54534 U.S. MOTORS General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 7 1/2 hp, 3,525 RPM (MPN S7P1ACR). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 208-230/460V AC; Full Load Current @ 60 Hz: 19.9-17.9/9.0 A; Nameplate RPM @ 60 Hz: 3,525 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS S7P1ACR is a C-Face with Rigid Base 3-Phase General Purpose AC Motor, featuring a Totally Enclosed Fan Cooled (TEFC) enclosure. It delivers 7 1/2 hp at 3,525 RPM (60 Hz) and operates on 208-230/460V AC with a full load current of 19.9-17.9/9.0 A.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 7 1/2 hp, 3,525 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,525 RPM
Manufacturer Part Number	S7P1ACR
Full Load Current @ 60 Hz	19.9-17.9/9.0 A
Nameplate Voltage @ 60 Hz	208-230/460V AC
MOTORS General Purpose Motor	Flange Mount
