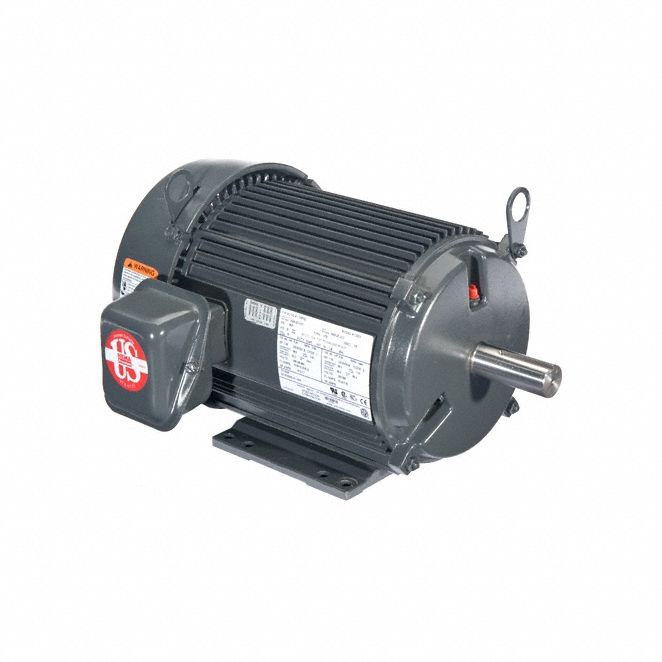

U.s. Motors 3G-OTH-56617 — Technical Specifications

Name: U.s. Motors 3G-OTH-56617 U.S. MOTORS General Purpose Motor: Flange Mount, Totally Enclosed Fan Cooled, 1 1/2 hp, 875 RPM (MPN U32P4D). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 190V AC; Full Load Current @ 60 Hz: 6.4-6.4/3.2 A; Nameplate RPM @ 60 Hz: 875 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS U32P4D is a rigid base 3-phase general purpose AC motor with a TEFC enclosure. It delivers 1 1/2 hp at 875 RPM (60 Hz) and operates at 190V AC with a full load current of 6.4-6.4/3.2 A (60 Hz).

View Product & Quote

Technical Specifications

Parameter	Value
Type	Totally Enclosed Fan Cooled, 1 1/2 hp, 875 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	875 RPM
Manufacturer Part Number	U32P4D
Full Load Current @ 60 Hz	6.4-6.4/3.2 A
Nameplate Voltage @ 60 Hz	190V AC
MOTORS General Purpose Motor	Flange Mount
