U.s. Motors 3G-OTH-66898 — Technical Specifications

Name: U.s. Motors 3G-OTH-66898 U.S. MOTORS General Purpose Motor: Flange Mount, Open Drip Proof, 60 hp, 890 RPM, 405T Frame Size (MPN D60P4E). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 380V AC; Full Load Current @ 60 Hz: 157.0/79.0 A; Nameplate RPM @ 60 Hz: 890 RPM; Motor Enclosure: ODP.
Brand: U.s. Motors

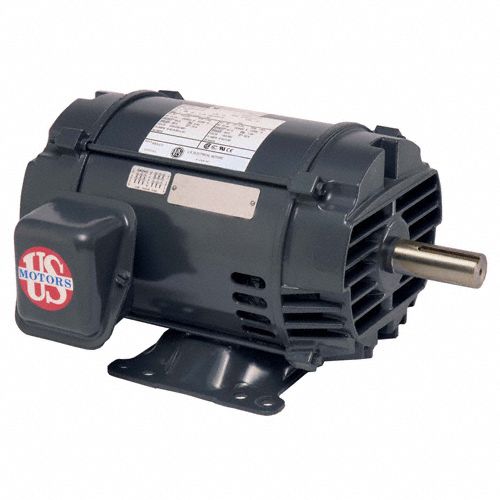

The U.S. MOTORS D60P4E is a 60 hp Rigid Base 3-Phase General Purpose AC Motor with an ODP enclosure. It operates at 890 RPM and 380V AC, drawing 157.0/79.0 A full load current at 60 Hz. This motor features a 405T frame size and is designed for general purpose industrial applications.

View Product & Quote

Technical Specifications

Parameter	Value
Type	Open Drip Proof, 60 hp, 890 RPM
Brand	U.S. MOTORS
Frame Size	405T
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	890 RPM
Manufacturer Part Number	D60P4E
Full Load Current @ 60 Hz	157.0/79.0 A
Nameplate Voltage @ 60 Hz	380V AC
MOTORS General Purpose Motor	Flange Mount
