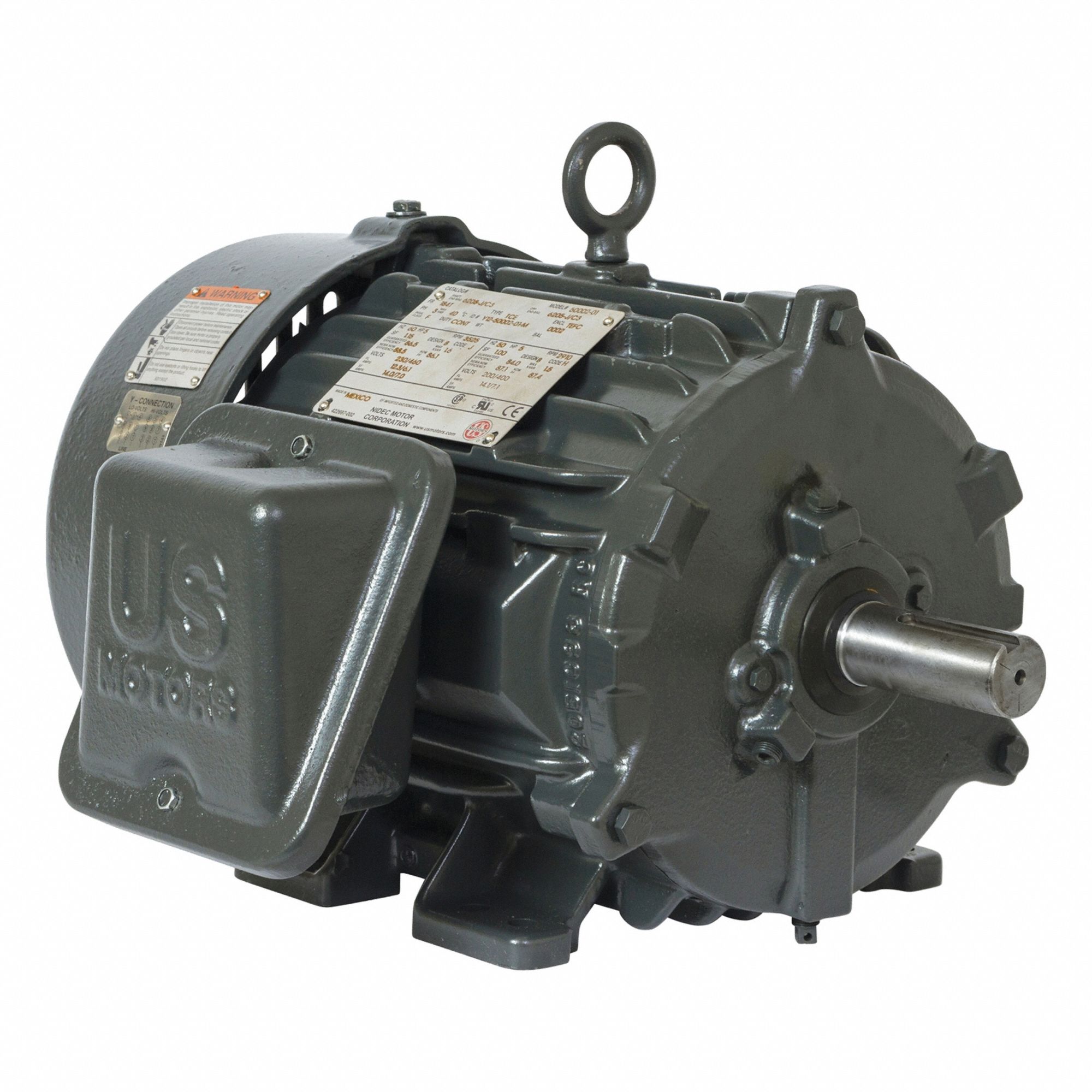

U.s. Motors 3G-OTH-73089 — Technical Specifications

Name: U.s. Motors 3G-OTH-73089 U.S. MOTORS Motor: Flange Mount, Totally Enclosed Fan Cooled, 60 hp, 230/460V AC, 1,800 RPM (MPN GM65). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 137.0/68.0 A; Nameplate RPM @ 60 Hz: 1,800 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 412EC4, MPN GM65) is a 60 hp, TEFC-enclosed motor with a nameplate voltage of 230/460V AC and a full load current of 137.0/68.0 A at 60 Hz. It operates at 1,800 RPM and features a flange mount configuration.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Totally Enclosed Fan Cooled, 60 hp, 1,800 RPM
Brand	U.S. MOTORS
MOTORS Motor	Flange Mount
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,800 RPM
Manufacturer Part Number	GM65
Full Load Current @ 60 Hz	137.0/68.0 A
Nameplate Voltage @ 60 Hz	230/460V AC
