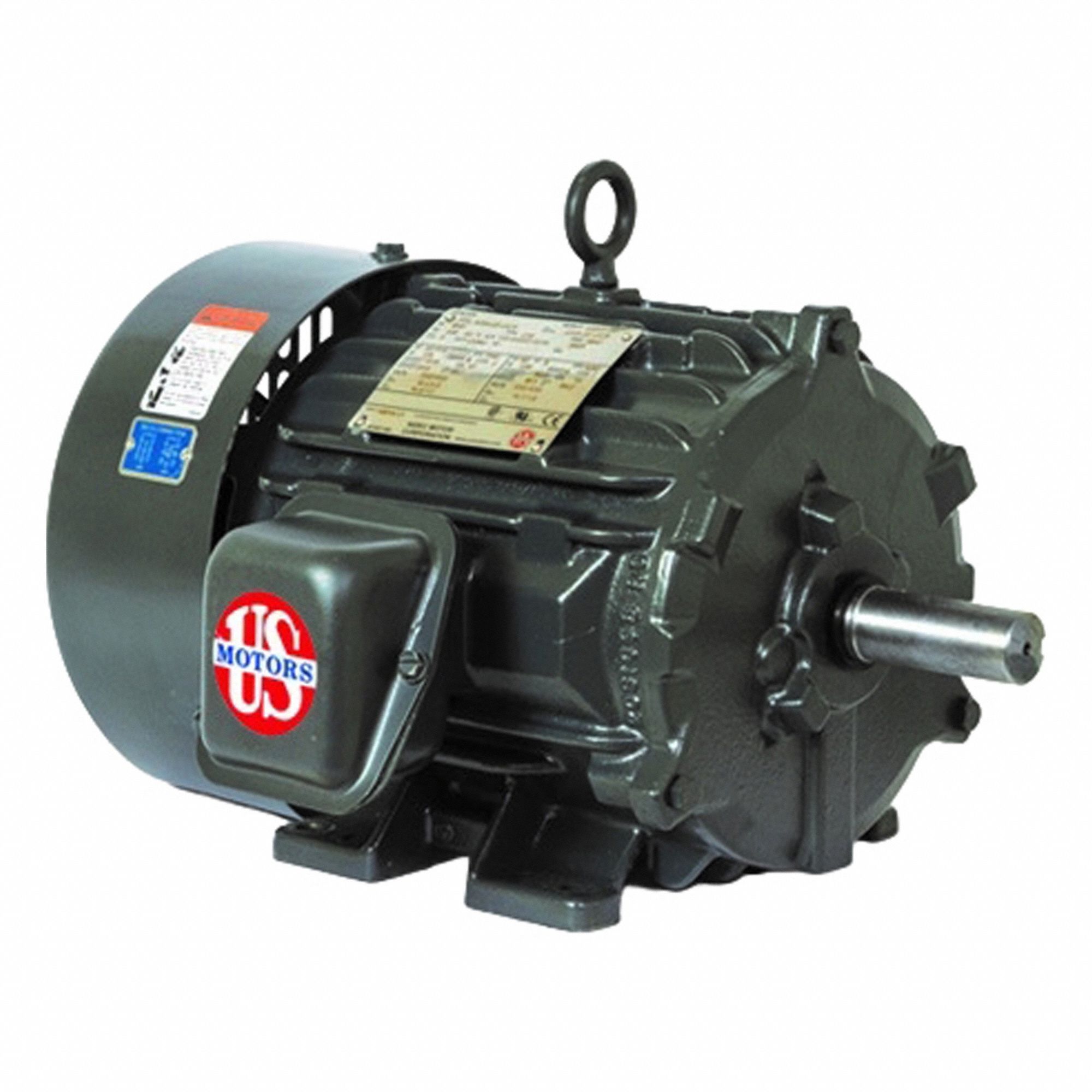

U.s. Motors 3G-OTH-71046 — Technical Specifications

Name: U.s. Motors 3G-OTH-71046 U.S. MOTORS Motor: Flange Mount, Totally Enclosed Fan Cooled, 15 hp, 575V AC, 1,200 RPM (MPN GL29). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 575V AC; Full Load Current @ 60 Hz: 14.7 A; Nameplate RPM @ 60 Hz: 1,200 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 412EU8, MPN GL29) is a 15 hp, TEFC-enclosed motor rated at 575V AC, 1,200 RPM, and 14.7 A full load current at 60 Hz. This industrial motor is designed for general-purpose applications requiring a rigid base mounting configuration.

View Product & Quote

Technical Specifications

Parameter	Value
AC	575V
Type	Totally Enclosed Fan Cooled, 15 hp, 1,200 RPM
Brand	U.S. MOTORS
MOTORS Motor	Flange Mount
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	1,200 RPM
Manufacturer Part Number	GL29
Full Load Current @ 60 Hz	14.7 A
Nameplate Voltage @ 60 Hz	575V AC
