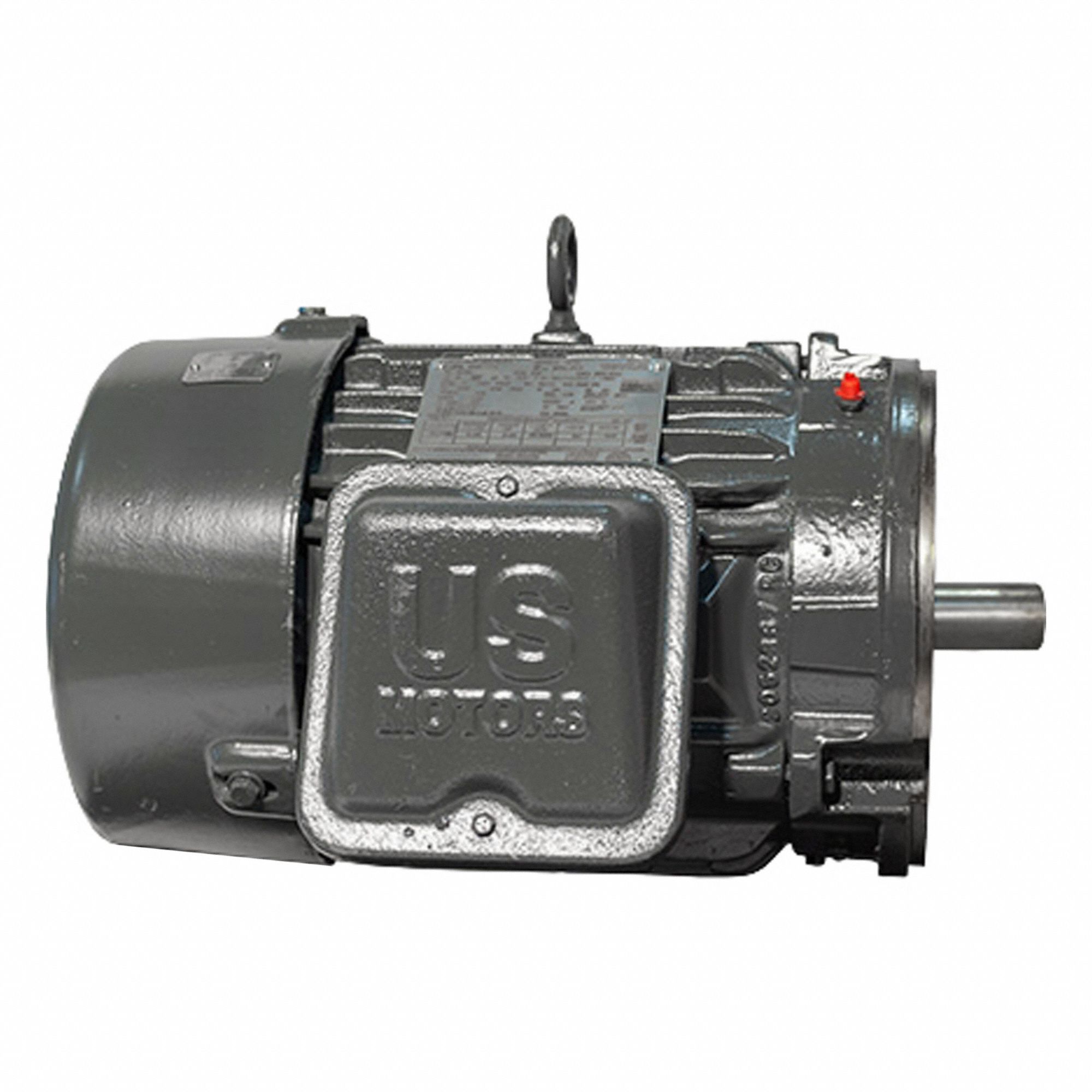

U.s. Motors 3G-OTH-59591 — Technical Specifications

Name: U.s. Motors 3G-OTH-59591 U.S. MOTORS Motor: Flange Mount, Totally Enclosed Fan Cooled, 15 hp, 460V AC, 3,600 RPM (MPN HT43). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 460V AC; Full Load Current @ 60 Hz: 35.0/17.5 A; Nameplate RPM @ 60 Hz: 3,600 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS HT43 is a C-Face 3-Phase General Purpose AC Motor with a TEFC enclosure, rated at 15 hp, 460V AC, and 3,600 RPM at 60 Hz. It draws a full load current of 35.0/17.5 A at 60 Hz. This flange-mount motor is designed for industrial applications requiring a compact, fan-cooled drive solution.

View Product & Quote

Technical Specifications

Parameter	Value
AC	460V
Type	Totally Enclosed Fan Cooled, 15 hp, 3,600 RPM
Brand	U.S. MOTORS
MOTORS Motor	Flange Mount
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,600 RPM
Manufacturer Part Number	HT43
Full Load Current @ 60 Hz	35.0/17.5 A
Nameplate Voltage @ 60 Hz	460V AC
