U.s. Motors 3G-OTH-81710 — Technical Specifications

Name: U.s. Motors 3G-OTH-81710 U.S. MOTORS Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 10 hp, 460V AC, 3,600 RPM (MPN HU64). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 460V AC; Full Load Current @ 60 Hz: 11.8 A; Nameplate RPM @ 60 Hz: 3,600 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

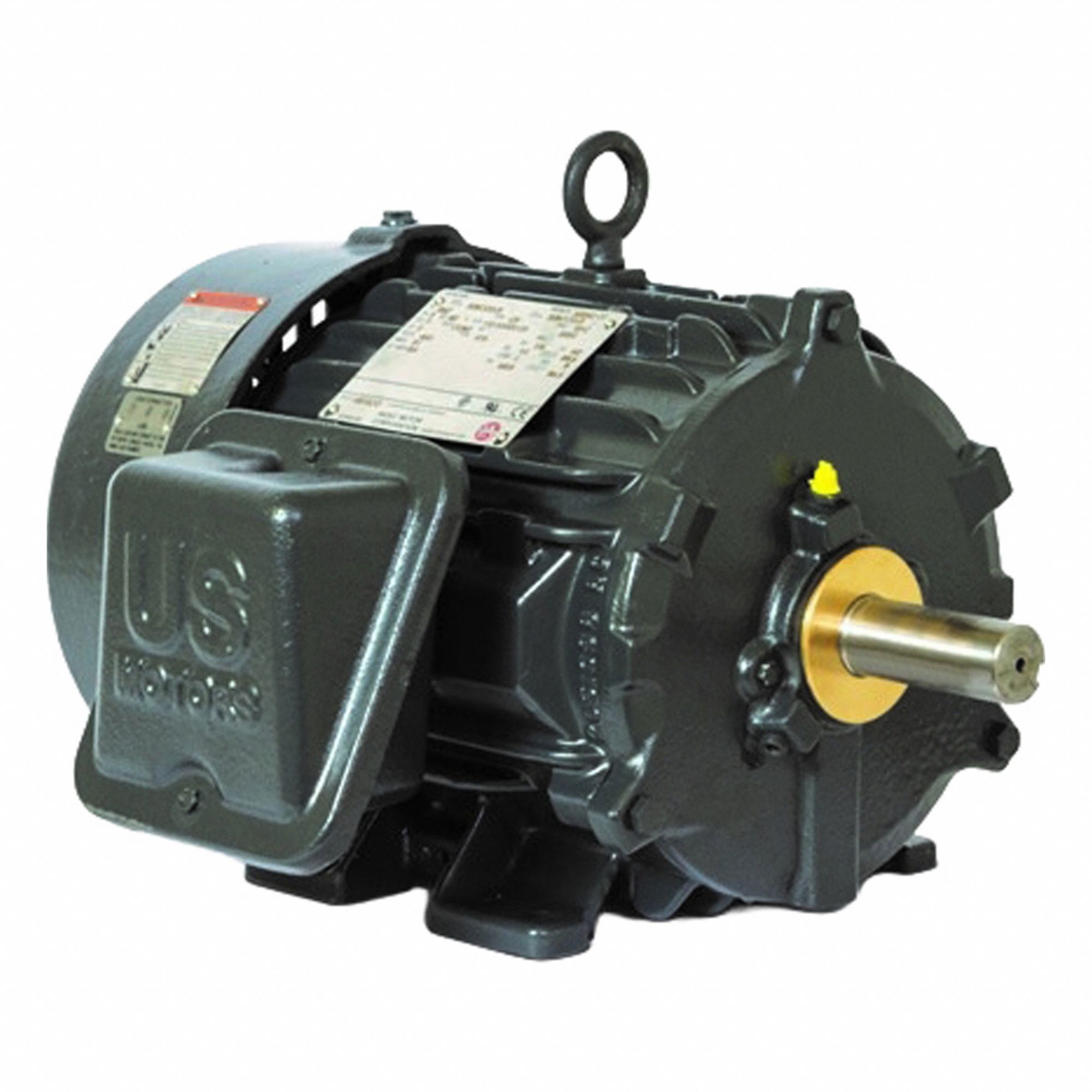

The U.S. MOTORS Rigid Base 3-Phase General Purpose AC Motor (SKU 412GD9, MPN HU64) is a 10 hp, TEFC enclosure motor with a nameplate voltage of 460V AC at 60 Hz. It delivers a nameplate RPM of 3,600 RPM at 60 Hz and draws a full load current of 11.8 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	460V
Type	Totally Enclosed Fan Cooled, 10 hp, 3,600 RPM
Brand	U.S. MOTORS
MOTORS Motor	Rigid Base Mount
Motor Enclosure	TEFC
Nameplate RPM @ 60 Hz	3,600 RPM
Manufacturer Part Number	HU64
Full Load Current @ 60 Hz	11.8 A
Nameplate Voltage @ 60 Hz	460V AC
