U.s. Motors 3G-OTH-55183 — Technical Specifications

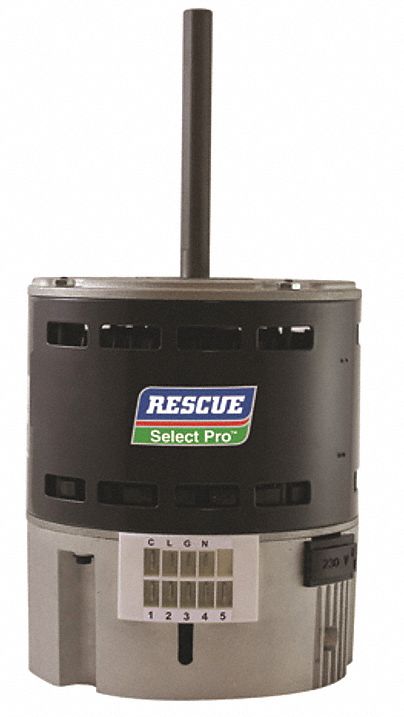

The U.S. MOTORS RESCUE® Series EC Motor (SKU 54ZX61) is a 48Y frame, constant-torque ECM blower motor rated at 3/4 hp, 1,075 RPM, and 115/208-230V AC with full-load amps of 9.3/5.8-5.4 A. It features integrated Bluetooth® Technology and includes a power supply wiring harness. This OAO-enclosed motor is not compatible with an external controller and does not include a user interface.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Belly Band, ECM, 3/4 hp |
| Brand | U.S. MOTORS |
| Features | Integrated Bluetooth® Technology |
| Includes | Power Supply Wiring Harness |
| Frame Size | 48Y |
| ECM Motor Type | Constant Torque |
| Motor Enclosure | OAO |
| Rated Horsepower | 3/4 hp |
| Horsepower/Wattage | 3/4 hp600 W |
| Nameplate RPM @ 60 Hz | 1,075 RPM |
| Full Load Amps @ 60 Hz | 9.3/5.8-5.4 A |
| Includes User Interface | No |
| Manufacturer Part Number | 6643 |
| Nameplate Voltage @ 60 Hz | 115/208-230V AC |
| External Controller Compatible | No |
| MOTORS Direct Drive Blower Motor | RESCUE® Select Pro™ |
| Compatible With External Controller | Not External Control Compatible |
