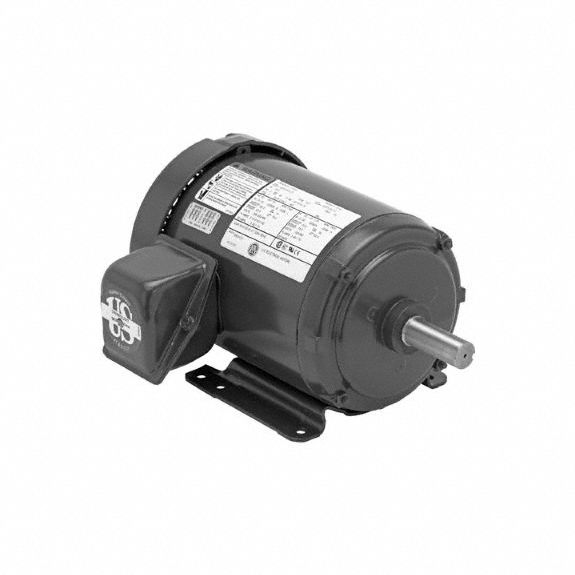

U.s. Motors 3G-OTH-56180 — Technical Specifications

Name: U.s. Motors 3G-OTH-56180 U.S. MOTORS Pump Motor: Rigid Base Mount, Totally Enclosed Fan Cooled, 1 1/2 hp, 575V AC, 1,755 RPM (MPN U32P2GH). Key specifications — Brand: U.S. MOTORS; Nameplate Voltage @ 60 Hz: 575V AC; Full Load Current @ 60 Hz: 1.7 A; Nameplate RPM @ 60 Hz: 1,755 RPM; Motor Enclosure: TEFC.
Brand: U.s. Motors

The U.S. MOTORS U32P2GH is a Rigid Base 3-Phase General Purpose AC Motor with a TEFC enclosure. It delivers 1,755 RPM at 60 Hz, operates at 575V AC, and draws a full load current of 1.7 A at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	575V
Type	Totally Enclosed Fan Cooled, 1 1/2 hp, 1,755 RPM
Brand	U.S. MOTORS
Motor Enclosure	TEFC
MOTORS Pump Motor	Rigid Base Mount
Nameplate RPM @ 60 Hz	1,755 RPM
Manufacturer Part Number	U32P2GH
Full Load Current @ 60 Hz	1.7 A
Nameplate Voltage @ 60 Hz	575V AC
