Vne 3G-OTH-453255 — Technical Specifications

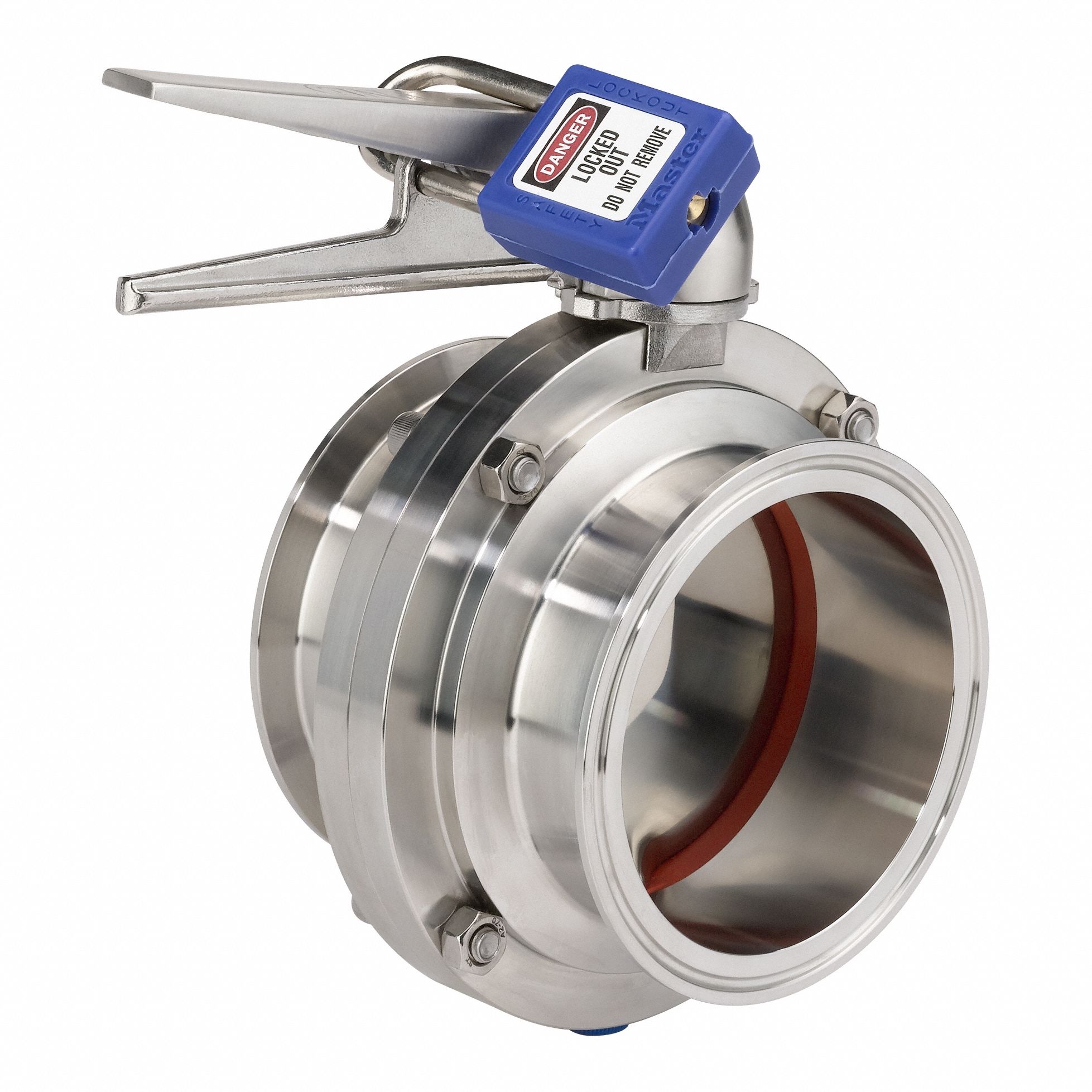

The VNE Butterfly Valve is a 3-A Certified Stainless Steel butterfly valve with a 1 1/2 in pipe size and clamp connection. It features a lever handle, 12 stop positions, and a maximum pressure rating of 145 psi (CWP). The valve is constructed with a 304 SS body and disc, and has an average surface roughness of 20RA ID/32RA OD.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Clamp, 12 |
| Brand | VNE |
| Handle Type | Lever |
| Body Material | 304 SS |
| Disc Material | 304 SS |
| Stop Positions | 12 |
| Stainless Steel | 304 |
| Max. Pressure (CWP) | 145 psi |
| Manufacturer Part Number | 625-10822 |
| Average Surface Roughness (Ra) | 20RA ID/32RA OD |
