Vne 3G-OTH-453378 — Technical Specifications

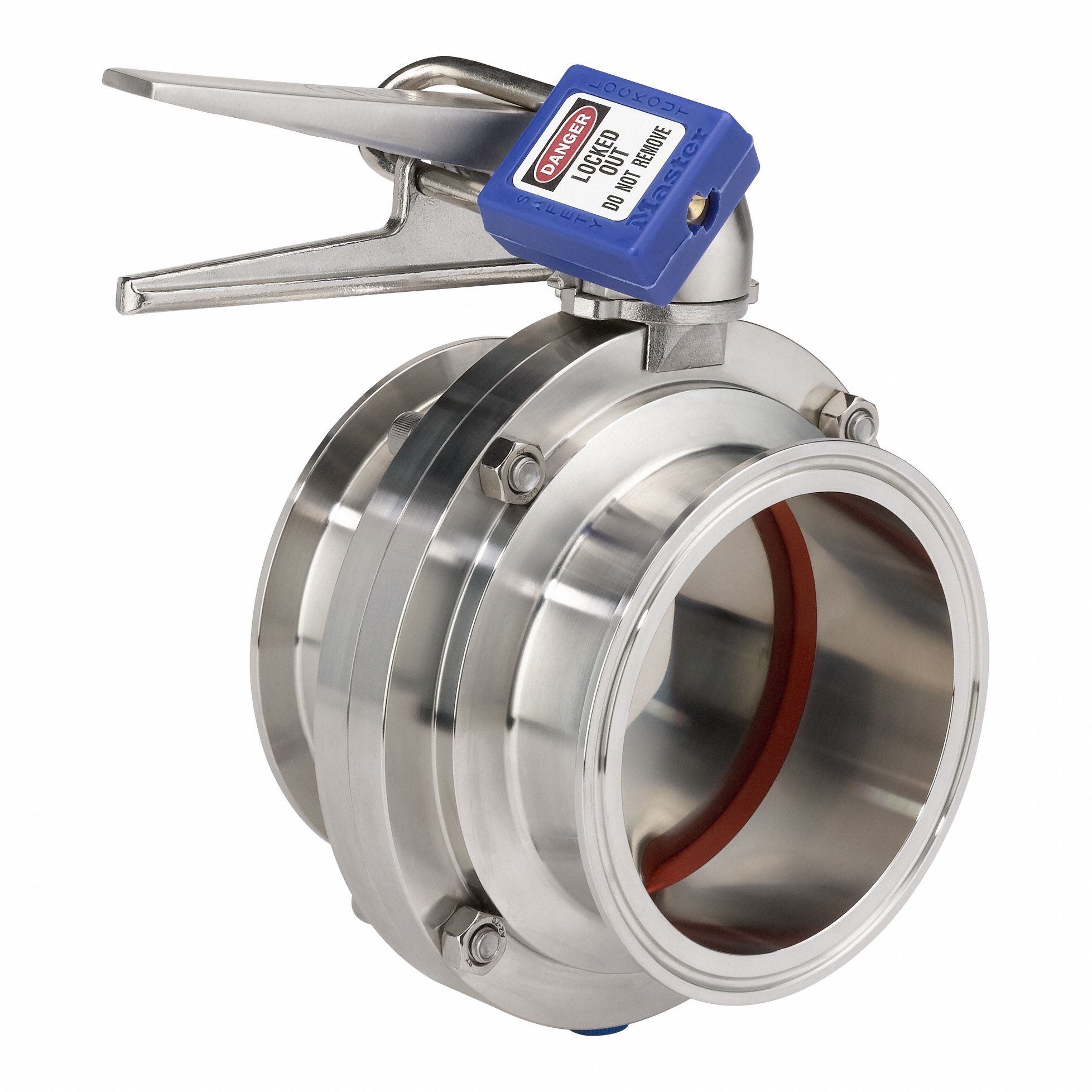

The VNE Butterfly Valve is a 3-A Certified stainless steel butterfly valve with a 4-inch pipe size and clamp connection, rated for 145 psi max. pressure (CWP). It features a 316 SS body and disc, a lever handle with 12 stop positions, and an average surface roughness of 20RA ID/32RA OD.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Clamp, Lever |
| Brand | VNE |
| Handle Type | Lever |
| Body Material | 316 SS |
| Disc Material | 316 SS |
| Stop Positions | 12 |
| Stainless Steel | 316 |
| Max. Pressure (CWP) | 145 psi |
| Manufacturer Part Number | 625-10802 |
| Average Surface Roughness (Ra) | 20RA ID/32RA OD |
