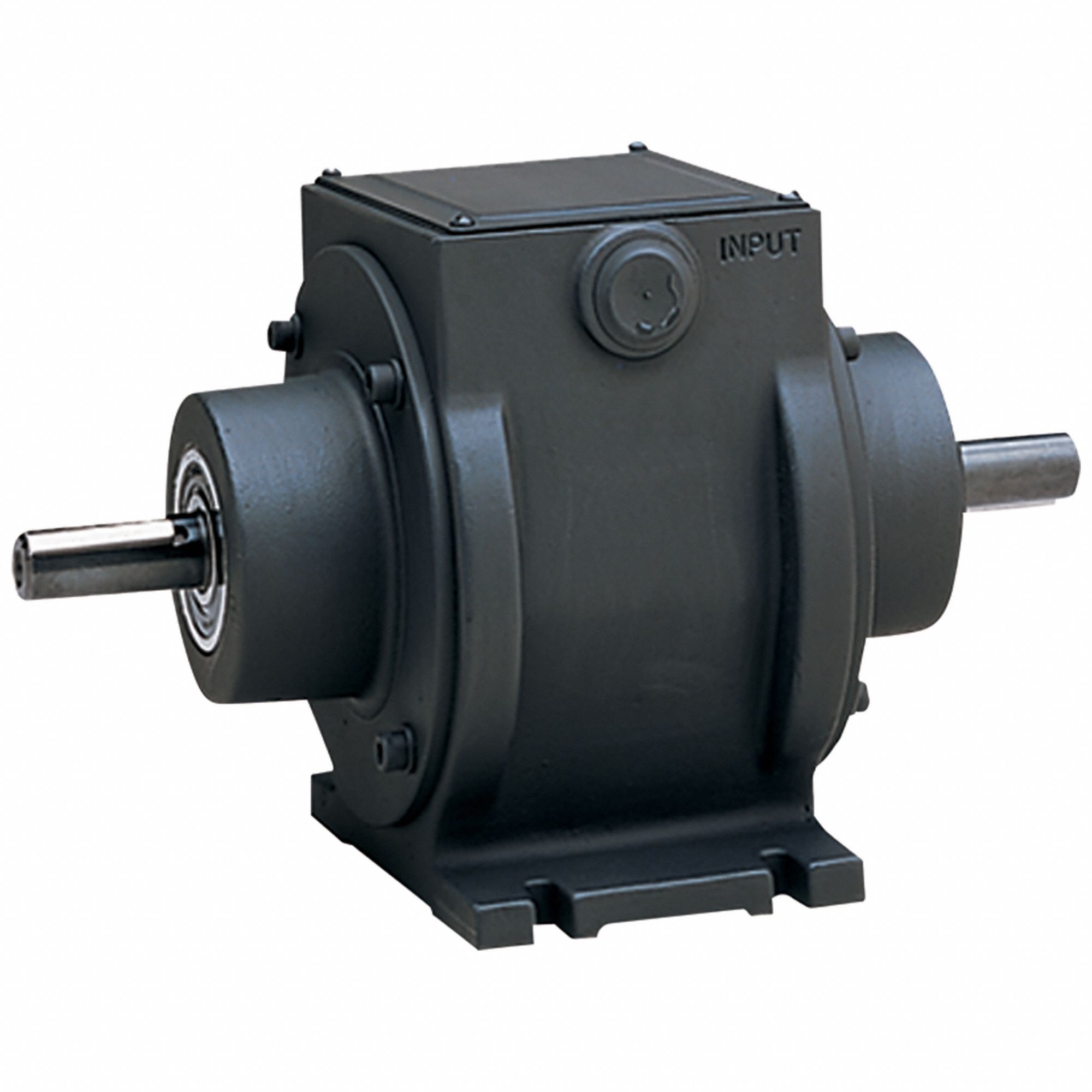

Warner Electric 3G-OTH-109618 — Technical Specifications
The WARNER ELECTRIC Clutch/Brake: 90V DC is a combined clutch and brake unit (MPN EP-500 90V) with a totally enclosed enclosure and foot mount. It delivers 2 hp @ 1725 RPM and 40 ft-lb static torque, operating on 90V DC.
Technical Specifications
| Parameter | Value |
|---|---|
| DC | 90V |
| Type | Totally Enclosed, 40 ft-lb Static Torque |
| Brand | WARNER ELECTRIC |
| Includes | Clutch |
| Enclosure Type | Totally Enclosed |
| Horsepower @ RPM | 2 hp @ 1725 RPM |
| Mounting Location | Foot Mount |
| Manufacturer Part Number | EP-500 90V |
