Weg 3G-OTH-58033 — Technical Specifications

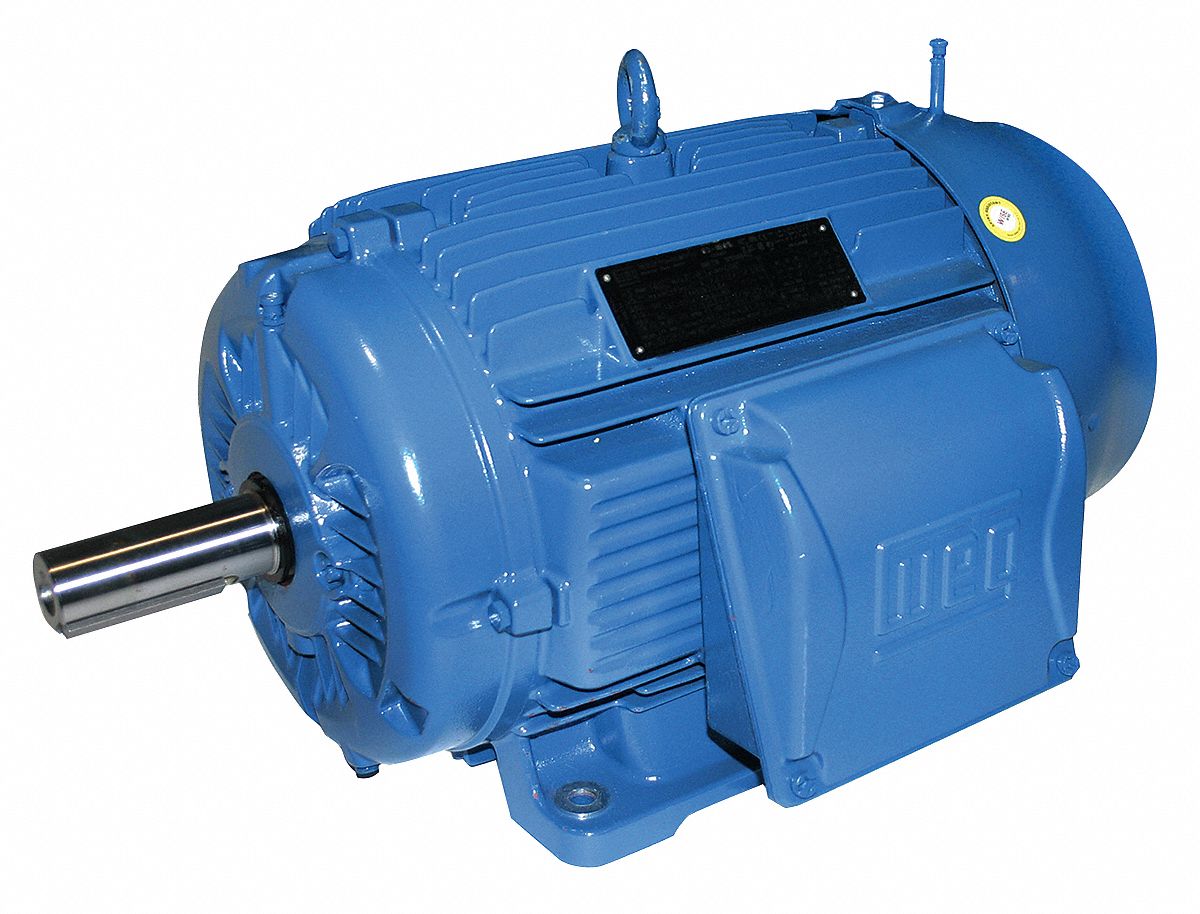

The WEG General Purpose Motor is a 30 hp Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It features a 200L frame size, nameplate voltage of 460V AC at 60 Hz, full load amps of 37.1 A at 60 Hz, and nameplate RPM of 1,180 at 60 Hz (MPN 02212ET3Y200L-W22).
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 200L |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1,180 RPM |
| Full Load Amps @ 60 Hz | 37.1 A |
| Manufacturer Part Number | 02212ET3Y200L-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
