Weg 3G-OTH-56979 — Technical Specifications

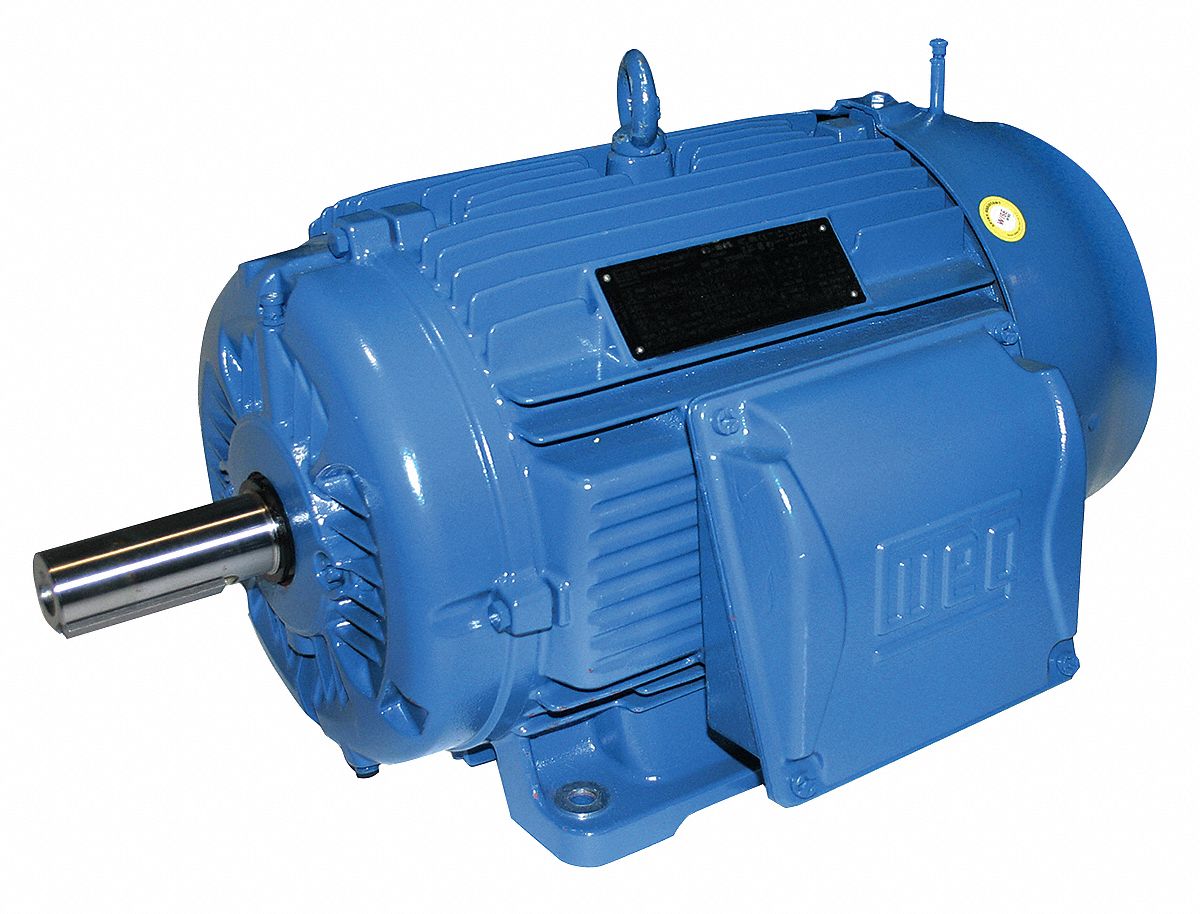

The WEG General Purpose Motor (75 hp) is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It operates at 1190 RPM and 460V AC at 60 Hz, drawing 90.2 full load amps. This model (MPN 05512ET3Y280S/M-W22) features a 280S/M frame size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 280S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1190 RPM |
| Full Load Amps @ 60 Hz | 90.2 A |
| Manufacturer Part Number | 05512ET3Y280S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
