Weg 3G-OTH-57126 — Technical Specifications

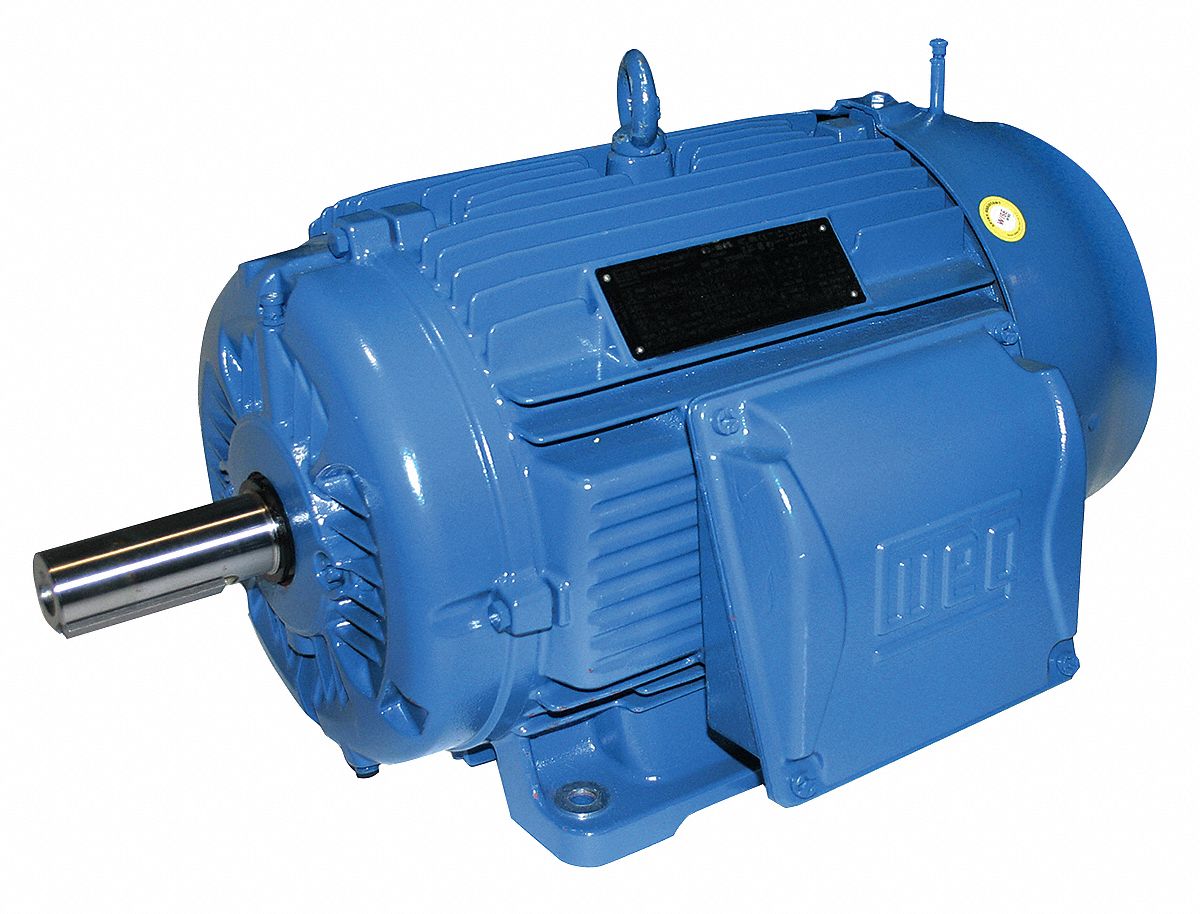

The WEG General Purpose Motor (150 hp) is a Rigid Base 3-Phase IEC Metric General Purpose AC Motor with a TEFC enclosure. It features a nameplate voltage of 460V AC at 60 Hz, full load amps of 178.0 A at 60 Hz, and a nameplate RPM of 1190 at 60 Hz. This model (MPN 11012ET3Y315S/M-W22) has a 315S/M frame size.
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Rigid Base Mount, Totally Enclosed Fan Cooled |
| Brand | WEG |
| Frame Size | 315S/M |
| Motor Enclosure | TEFC |
| Nameplate RPM @ 60 Hz | 1190 RPM |
| Full Load Amps @ 60 Hz | 178.0 A |
| Manufacturer Part Number | 11012ET3Y315S/M-W22 |
| Nameplate Voltage @ 60 Hz | 460V AC |
