Weg 3G-OTH-54982 — Technical Specifications

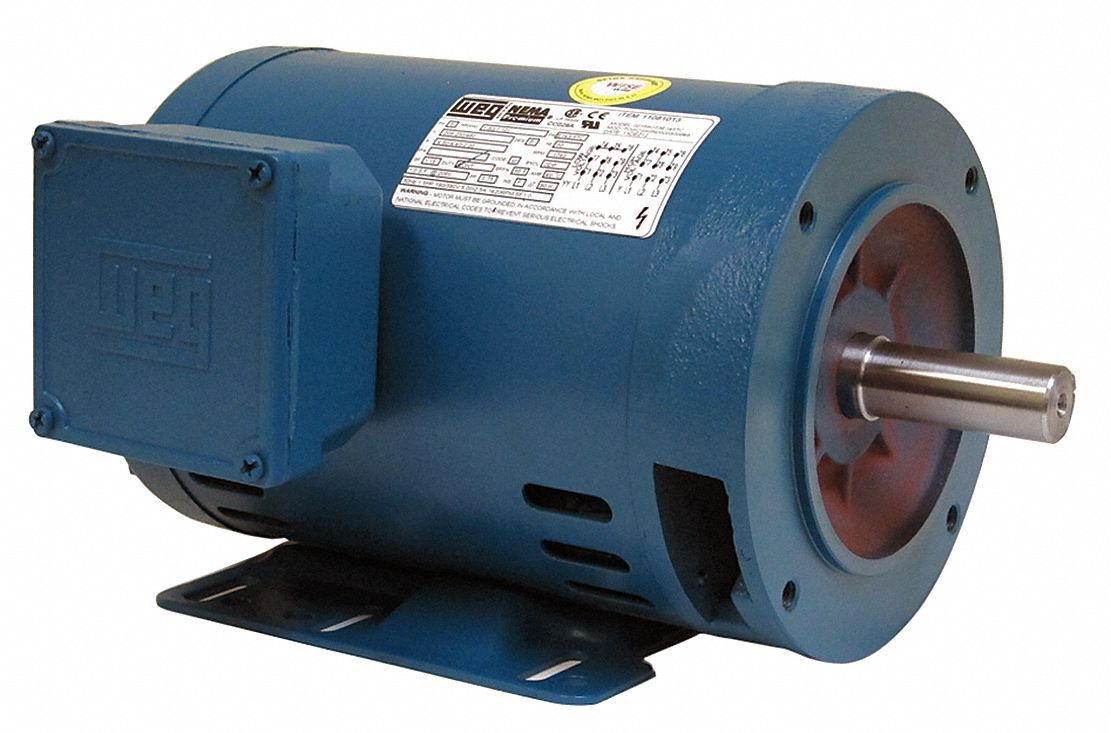

The WEG General Purpose Motor is a C-Face with Rigid Base 3-Phase AC motor in an Open Drip Proof (ODP) enclosure. It delivers 20 hp at 1,772 RPM with a full load current of 19.8 A at 575V AC (60 Hz). This model (MPN 02018OT3H256TC) is designed for industrial applications requiring a NEMA C-face mounting configuration.
Technical Specifications
| Parameter | Value |
|---|---|
| AC | 575V |
| Type | Open Drip Proof, 20 hp, 1,772 RPM |
| Brand | WEG |
| Motor Enclosure | ODP |
| Nameplate RPM @ 60 Hz | 1,772 RPM |
| Manufacturer Part Number | 02018OT3H256TC |
| Full Load Current @ 60 Hz | 19.8 A |
| Nameplate Voltage @ 60 Hz | 575V AC |
