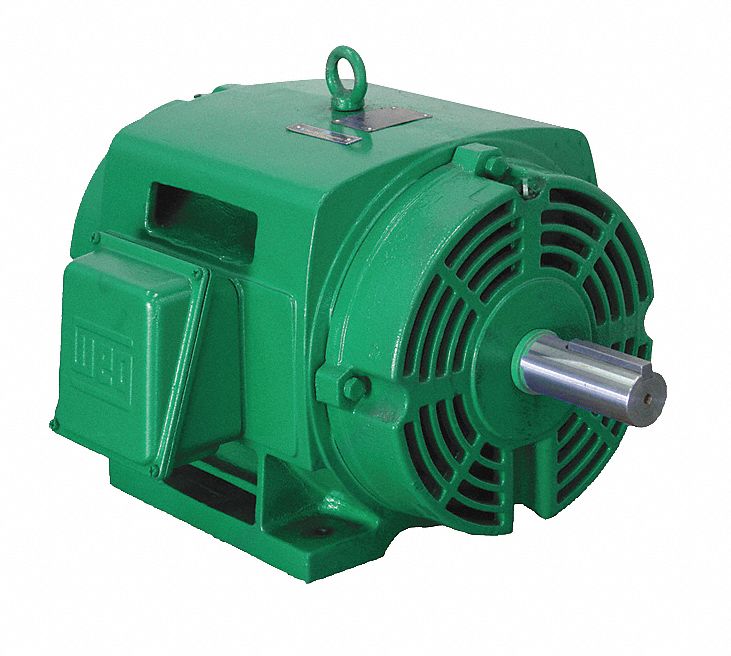

Weg 3G-OTH-60676 — Technical Specifications

Name: Weg 3G-OTH-60676 WEG General Purpose Motor: Rigid Base Mount, Open Drip Proof, 20 hp, 230/460V AC, 1,765 RPM (MPN 02018OT3E256T-W40). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 48.2/24.1 A; Nameplate RPM @ 60 Hz: 1,765 RPM; Motor Enclosure: ODP.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount is a 20 hp, rigid base 3-phase AC motor with an ODP enclosure. It operates at 1,765 RPM and 230/460V AC, drawing a full load current of 48.2/24.1 A at 60 Hz (MPN 02018OT3E256T-W40).

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 20 hp, 1,765 RPM
Brand	WEG
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,765 RPM
Manufacturer Part Number	02018OT3E256T-W40
Full Load Current @ 60 Hz	48.2/24.1 A
Nameplate Voltage @ 60 Hz	230/460V AC
