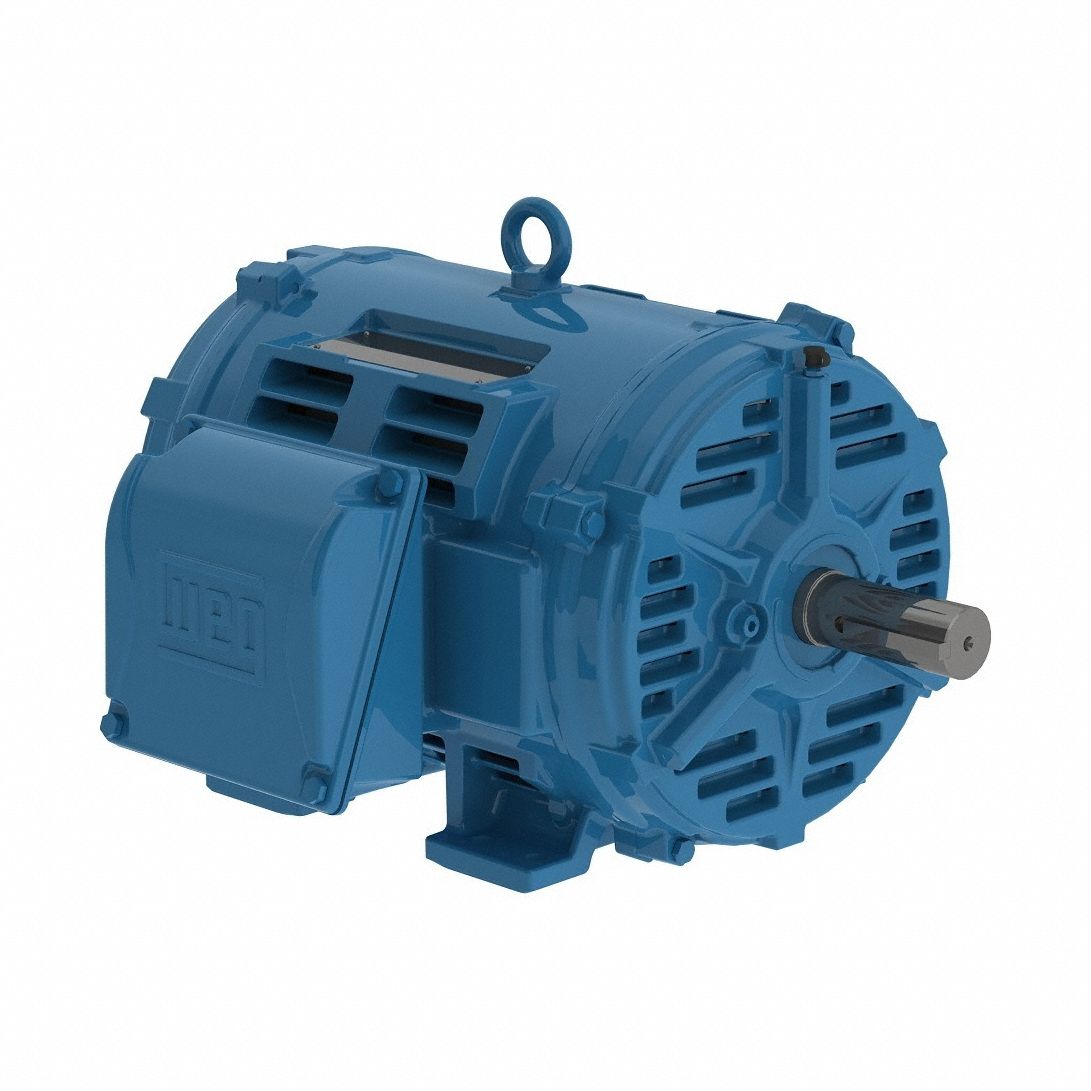

Weg 3G-OTH-61015 — Technical Specifications

Name: Weg 3G-OTH-61015 WEG General Purpose Motor: Rigid Base Mount, Open Drip Proof, 25 hp, 230/460V AC, 1,770 RPM (MPN 02518OT3E284T-W40). Key specifications — Brand: WEG; Nameplate Voltage @ 60 Hz: 230/460V AC; Full Load Current @ 60 Hz: 59.0/29.5 A; Nameplate RPM @ 60 Hz: 1,770 RPM; Motor Enclosure: ODP.
Brand: Weg

The WEG General Purpose Motor: Rigid Base Mount (SKU 1XTX4) is a rigid base 3-phase general purpose AC motor with an ODP enclosure. It is rated at 25 hp, with a nameplate voltage of 230/460V AC and a full load current of 59.0/29.5 A at 60 Hz. The motor operates at 1,770 RPM at 60 Hz.

View Product & Quote

Technical Specifications

Parameter	Value
AC	230/460V
Type	Open Drip Proof, 25 hp, 1,770 RPM
Brand	WEG
Motor Enclosure	ODP
Nameplate RPM @ 60 Hz	1,770 RPM
Manufacturer Part Number	02518OT3E284T-W40
Full Load Current @ 60 Hz	59.0/29.5 A
Nameplate Voltage @ 60 Hz	230/460V AC
